Features
Ultra-low-profile
This soundbar comes with just 62mm height that can be placed under your TV, fits any home décor
Dedicated sound mode to enhance voice clarity
Just press the “Voice” button on the remote control to enhance voice clarity, and never miss word of your favorite movie.
Built-in subwoofer
The built-in subwoofer delivers deep bass. There’s no need for another box and extra cables around your livingroom.
Dolby Digital embedded
Delivers powerful sound that enhances any movie experience.
Wireless music streaming via Bluetooth
Stream and enjoy all your music wirelessly from any mobile device.
One cable connection with HDMI ARC
The one cable HDMI ARC connection allows for the simplest set-up and a hassle-free user experience.
Specs & Downloads
รายการ#: JBLSB120BLKBSAS
Product Description
Simple. Compact. Powerful.

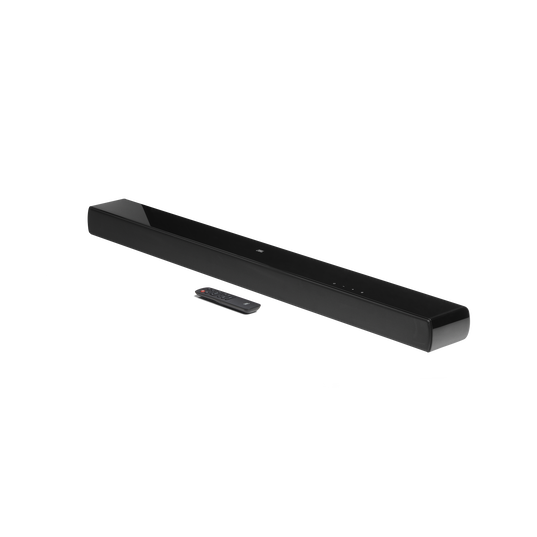

The JBL Cinema SB120 is a hassle-free soundbar in low profile that fits neatly in front of your TV. It features Bluetooth for wireless music and one cable connection with HDMI ARC for a simplified user experience. Combining 110W of power, two full range drivers, two 2.5" woofers, a built-in subwoofer for deep bass and Dolby digital, it delivers powerful sound for the ultimate listening experience.
ข้อมูลทั่วไป
Power supply
100 - 240VAC, ~ 50/60Hz
Operating temperature
0°C - 45°C
Audio Specifications
Total speaker power output (Max. @THD 1%)
110W
Soundbar power output (Max. @THD 1%)
2 x 27W full range driver + 56W woofer
Soundbar transducer
2 x 2.25" full range driver + 2 x 2.5" woofer
Max SPL
82dB
Frequency response
40Hz - 20KHz
Audio inputs
1 Optical, Bluetooth
(USB is for Service only.)
ขนาด
Soundbar dimensions (WxHxD)
950 x 90 x 55 (mm) / 37.4” x 3.5” x 2.1”
Soundbar weight
2.6 kg
Control and Connection Specifications
Bluetooth version
4.2
Bluetooth profile
A2DP V1.3/ AVRCP V1.5
Bluetooth frequency range
2402MHz-2480MHz
Bluetooth Max. transmitting power
<0dbm (EIRP)
Modulation Type
GFSK, π/4 DQPSK

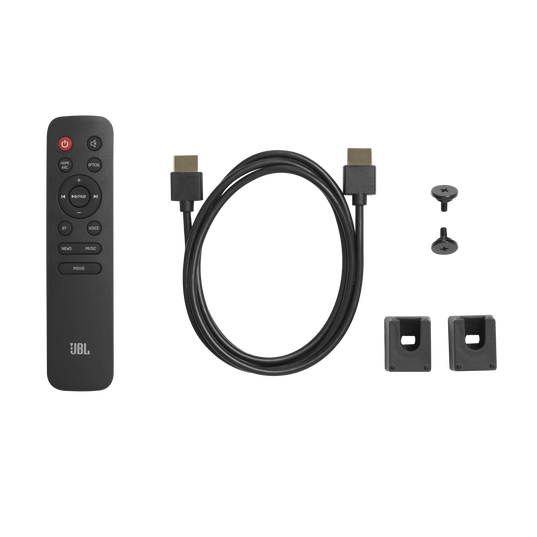

มีอะไรอยู่ในกล่อง
- Soundbar
- Remote control with batteries
- Power cables (up to 4pcs depending on region SKUs)
- HDMI cable
- Wall-mount bracket kit with screws
- Quick start guide
- Warranty card
- Safety sheet
