JBL SUBBPNANO

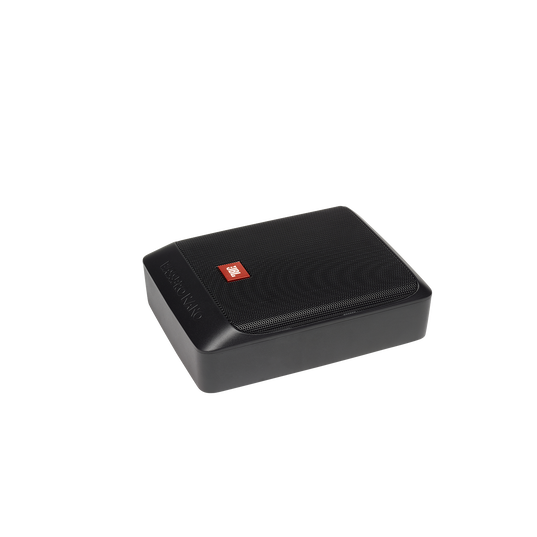

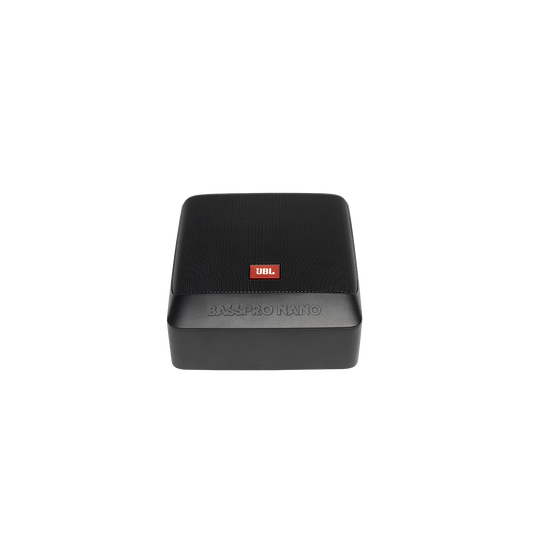

JBL BassPro Nano

Ultra-Compact Under Seat Powered Subwoofer System

Variations



Features

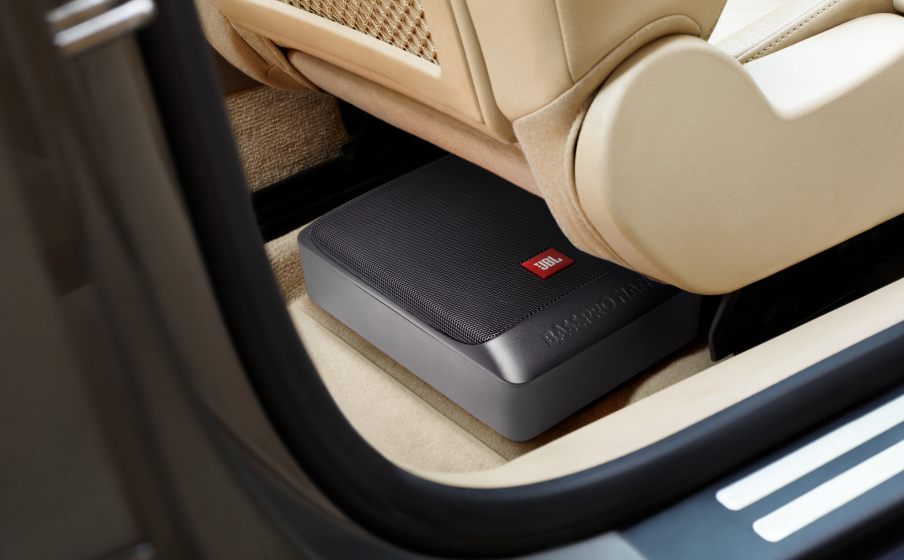

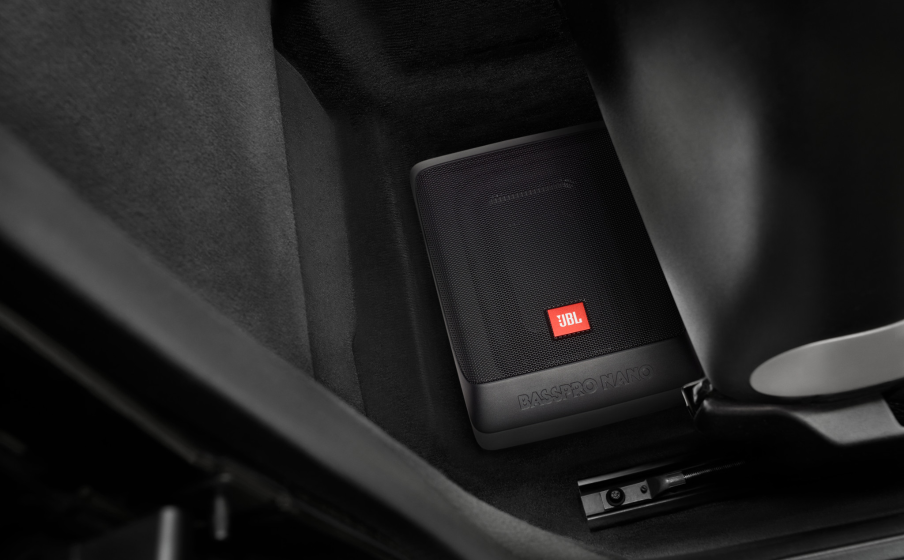

Big Bass, Small Space

Big Bass, Small Space

JBL BassPro Nano delivers bumping bass and takes up little space. The on-board 100Wrms amplifier has been performance matched to subwoofer to deliver the amount of clear, tight bass.

Intelligent Electronic Design for Reliable and Extraordinary Performance

Intelligent Electronic Design for Reliable and Extraordinary Performance

The BassPro Nano employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Die-Casting Aluminum Enclosure Design

Die-Casting Aluminum Enclosure Design

The rugged all-die-cast aluminum enclosure design in anodized textured matte black not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.

Bass Volume Remote Control

Bass Volume Remote Control

Bass Volume Remote control is included to let you adjust the sound from the driver's seat.

Specs & Downloads

รายการ# SUBBPNANO

Product Description

Deep Bass Without Taking Up Space

JBL's BassPro NANO delivers deep bass and takes up little space. JBL's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Its rugged all-die-cast aluminum enclosure with anodized textured matte black finish, which looks great. Powered by a 100Watt Amplifier, BassPro Nano delivers punchy, tight bass you would expect from JBL, all while running cool and drawing minimal current from your vehicles charging system.

ข้อมูลทั่วไป

Driver Complement 6"x8"(152mmx203mm) Subwoofer
Amplifier Power 100Wrms; 200W Max
Frequency Response 30Hz – 150Hz
Fuse 15A
Maximum Current Draw 13 A
Quiescent Current Draw <600 mA
Input Sensitivity 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
Crossover Frequency 50 Hz – 150 Hz
Crossover Slope 12 dB/octave
Bass Boost 0dB to + 12dB @ 50Hz
Dimensions (L x W x H) 10-1/4" x 7-11/16" x 2-15/16"(260.0mm x 195.0mm x 74.6mm)
Weight 7.78 lbs (3.53kg)

มีอะไรอยู่ในกล่อง

  • 1 x Under seat subwoofer
  • 4 x Screws
  • 4 x Small metal plate

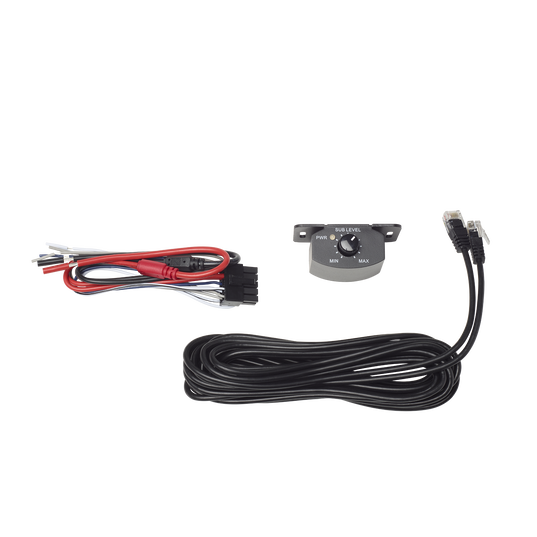

  • 1 x Wiring harness
  • 1 x Bass volume remote control(with cable)
  • 1 x 15A Fuse
JBL CLub One Box visual

คู่มือและดาวน์โหลด

คู่มือเจ้าของล่าสุด คู่มือเริ่มต้นฉบับย่อ และเอกสาร
