Features
110W power output
Incredible, powerful sound for an immersive cinematic experience.
Dedicated sound mode to enhance voice clarity
Just press the “Voice” button on the remote control to enhance voice clarity, and never miss word of your favorite movie.

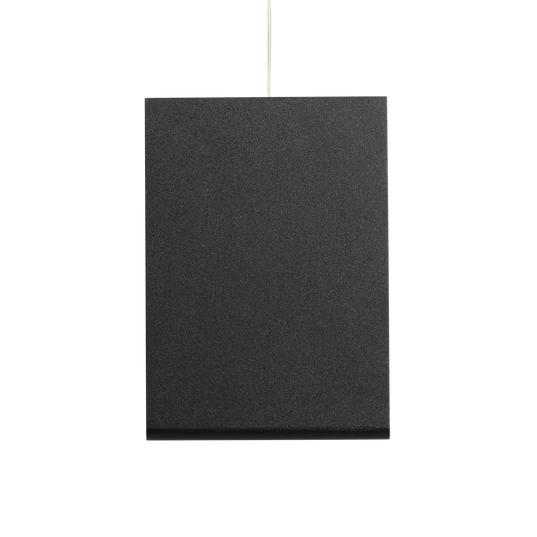

Wired subwoofer for extra deep bass
Enjoy deep and thrilling bass.
Dolby Digital embedded
Dolby Digital embedded for the ultimate movie experience.
Wireless music streaming via Bluetooth
Stream and enjoy all your music wirelessly from any mobile device.
One cable connection with HDMI ARC
The one cable HDMI ARC connection allows for the simplest set-up and a hassle-free user experience.
Specs & Downloads
รายการ# JBLSB140BLKAS
Product Description
Extra Bass. Powerful sound.

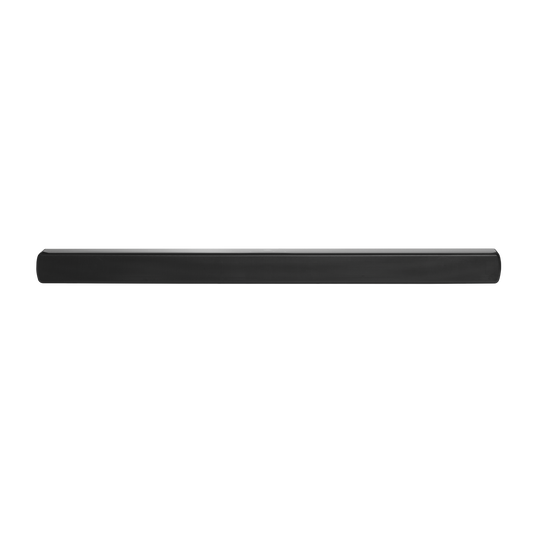

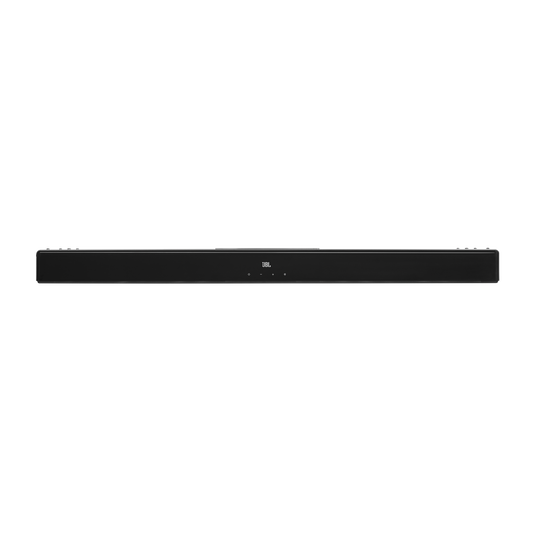

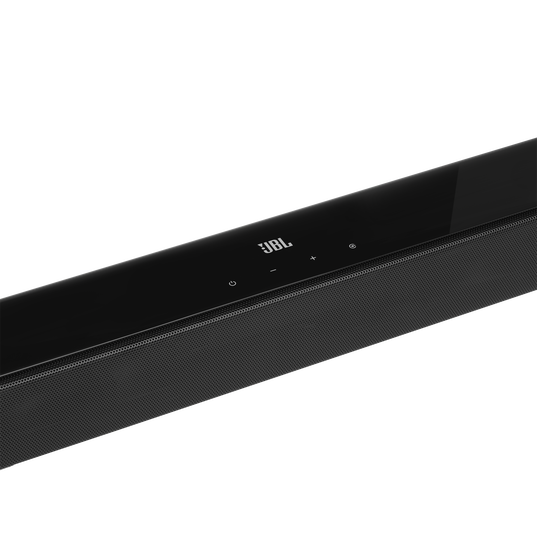

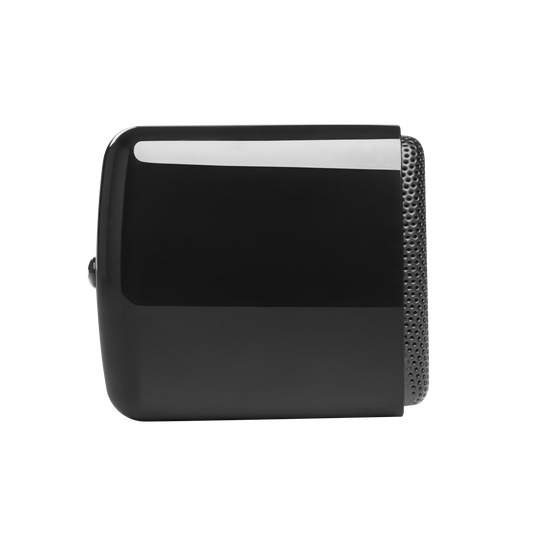

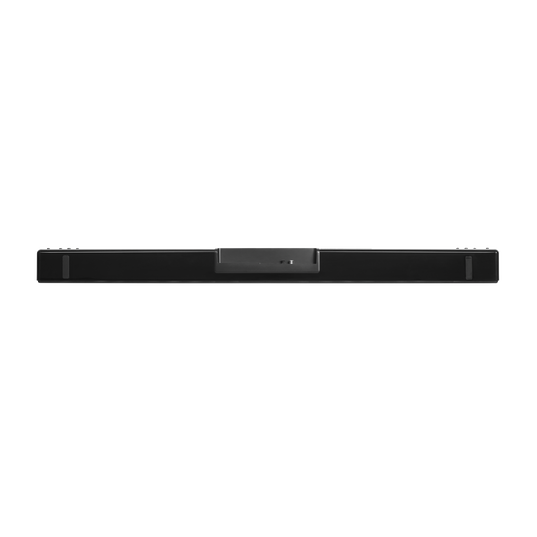

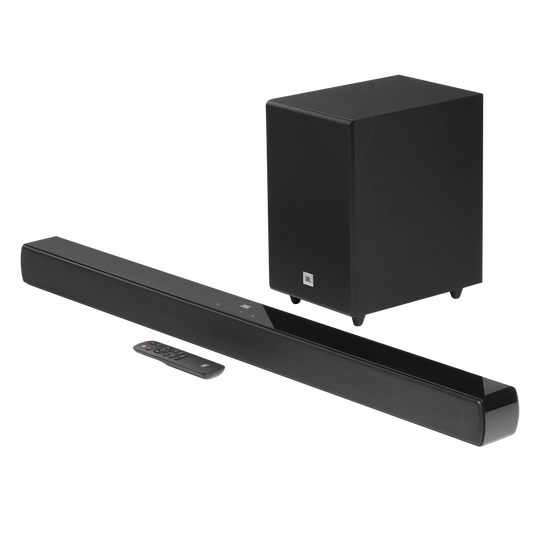

The JBL Cinema SB140 features 110W system power, Dolby Digital, two full range drivers and comes with a wired subwoofer. Enjoy powerful sound with extra deep bass for movies and music entertainment. It’s Bluetooth-enabled so you can play your favorite music wirelessly from any smartphone, tablet or laptop and features a one cable connection with HDMI ARC that ensures a hassle-free user experience.
ข้อมูลทั่วไป
Power supply
100 - 240VAC, ~ 50/60Hz
Operating temperature
0°C - 45°C
Audio Specifications
Total speaker power output (Max. @THD 1%)
110W
Soundbar power output (Max. @THD 1%)
2 x 27W
Subwoofer power output (Max. @THD 1%)
56W
Soundbar transducer
2 x 2" full range driver

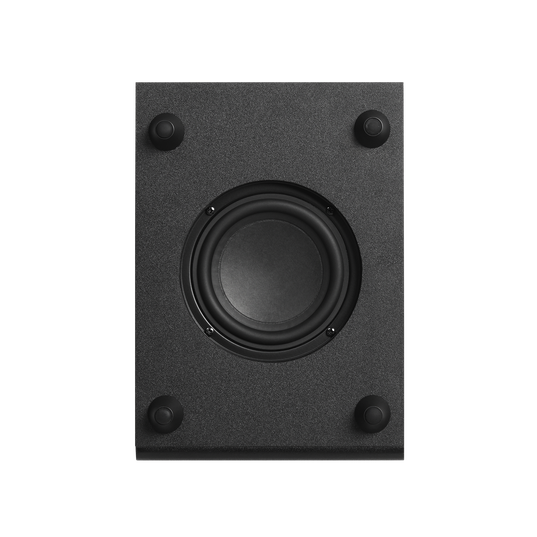

Subwoofer transducer
4", wired sub
Max SPL
82dB
Frequency response
40Hz - 20KHz
Audio inputs
1 Optical, Bluetooth
(USB is for Service only.)
ขนาด

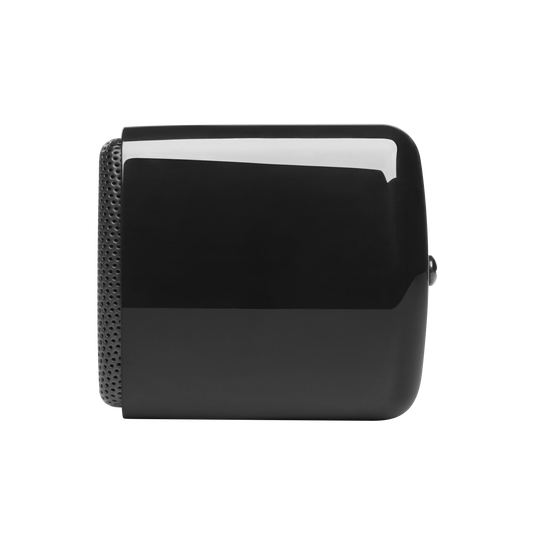

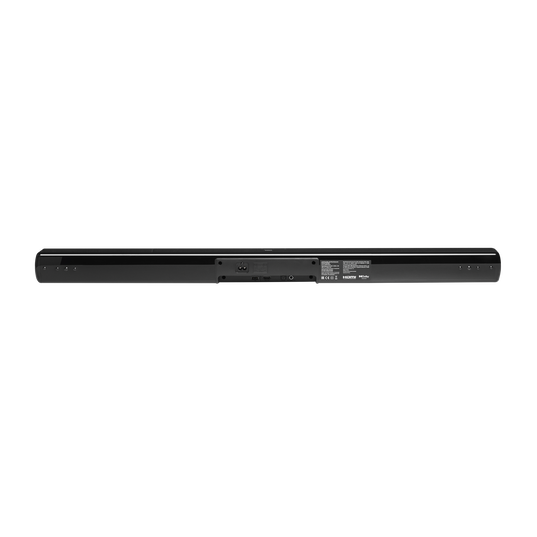

Soundbar dimensions (WxHxD)
900 x 67 x 63 (mm) / 35.4" x 2.6" x 2.5"

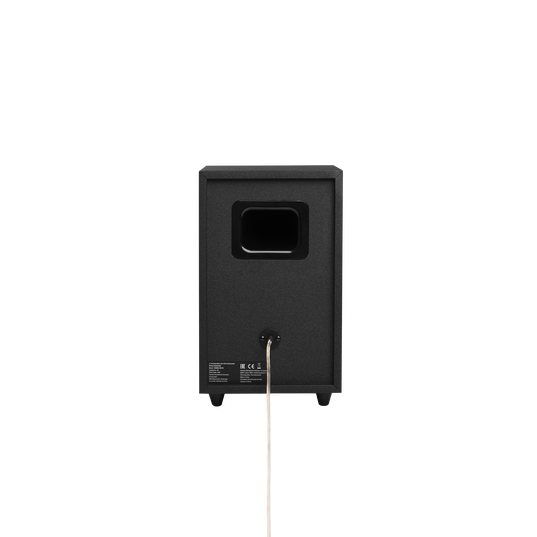

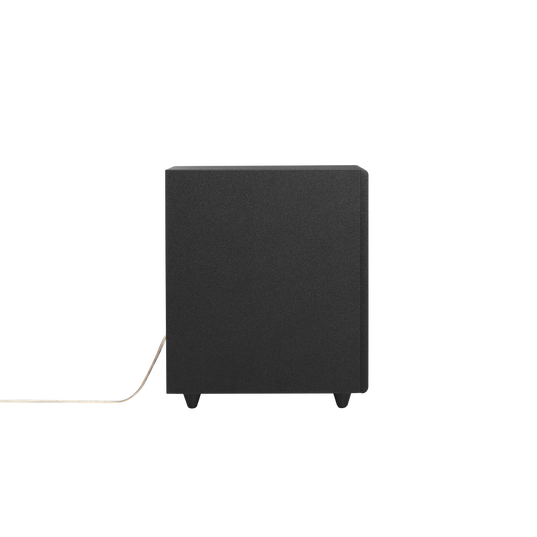

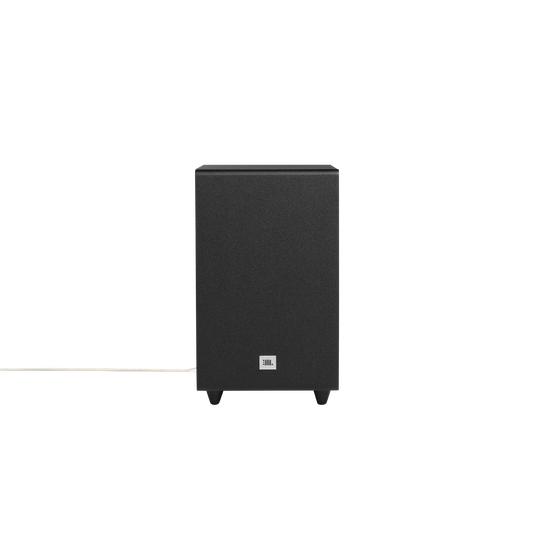

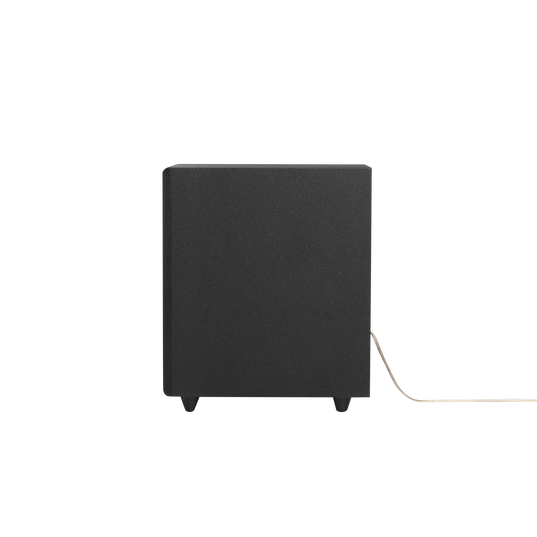

Subwoofer dimensions (WxHxD)
150 x 320 x 220 (mm) / 6" x 12.6" x 8.7"
Soundbar weight
1.5 kg
Subwoofer weight
2.8kg
Control and Connection Specifications
Bluetooth version
4.2
Bluetooth profile
A2DP V1.3/ AVRCP V1.5
Bluetooth frequency range
2402MHz-2480MHz
Bluetooth Max. transmitting power
<0dbm (EIRP)
Modulation Type
GFSK, π/4 DQPSK

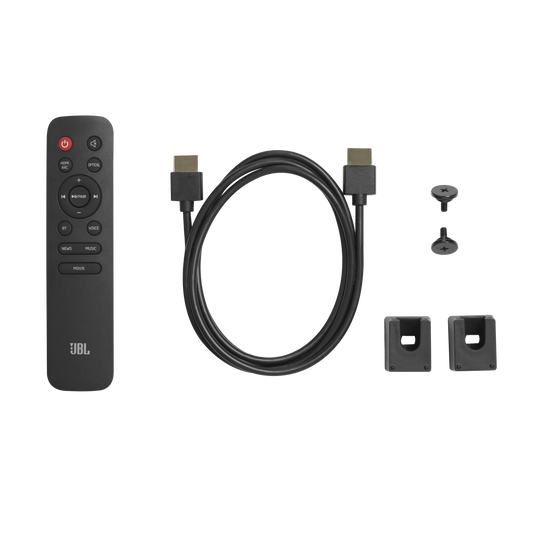

มีอะไรอยู่ในกล่อง
- Soundbar
- Wired subwoofer
- Remote control with batteries
- Power cords (up to 4pcs depending on region SKUs)
- HDMI cable
- Wall-mount bracket kit with screws
- Quick start guide
- Warranty card
- Safety sheet
คู่มือและดาวน์โหลด
คู่มือเจ้าของล่าสุด คู่มือเริ่มต้นฉบับย่อ และเอกสาร
