JBL JBL-PRX ONE-NA-LS

JBL PRX ONE

All-In-One Powered Column PA with Mixer and DSP

Variations



Features

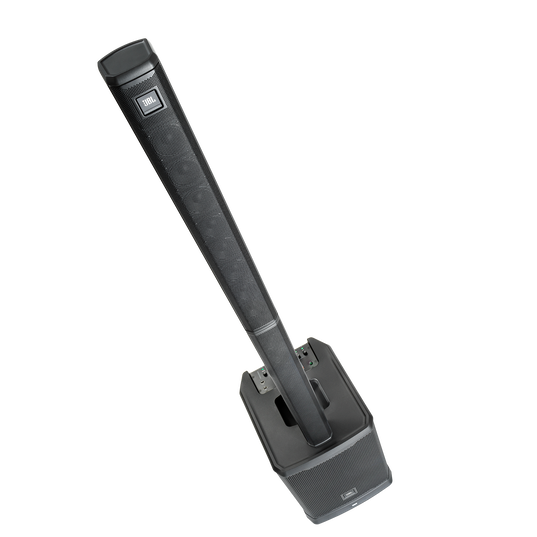

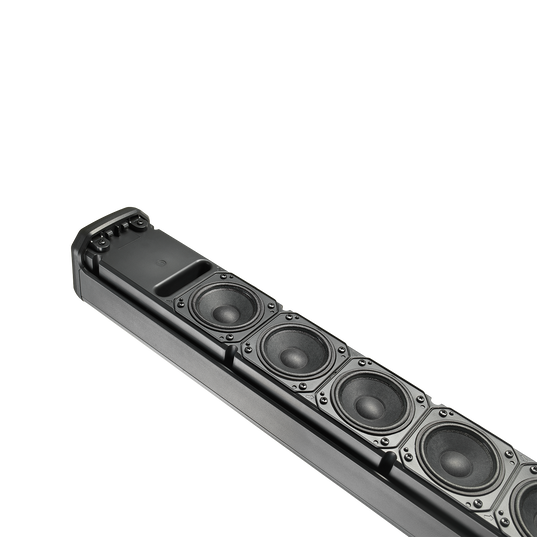

Vertical array of 12 2.5-inch drivers

Vertical array of 12 2.5-inch drivers

Delivers consistent, even HF response from the front of the room to the back

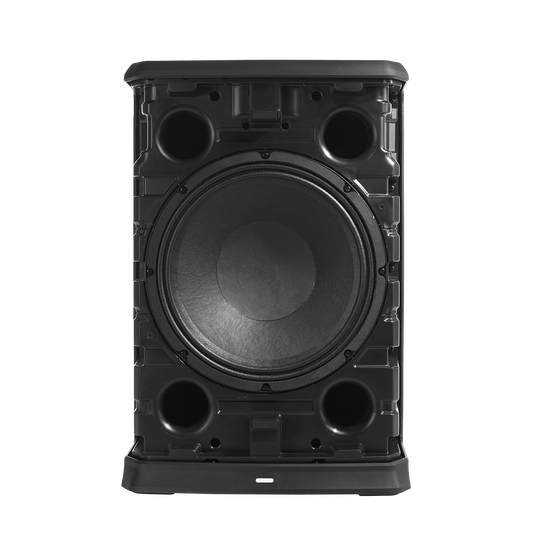

12-inch bass-reflex woofer

12-inch bass-reflex woofer

Extends low-end response to 35 Hz

Bluetooth 5.0 connectivity & full app control

Bluetooth 5.0 connectivity & full app control

Allows remote system control of up to 10 units using the JBL Pro Connect app

Wide, 130° (H) x 30° (V) dispersion pattern

Wide, 130° (H) x 30° (V) dispersion pattern

Delivers consistent coverage across the audience area

Sophisticated crossover management and HF/LF coupling

Sophisticated crossover management and HF/LF coupling

Allow for more natural low-end response and smooth, uniform response across the entire frequency range

JBL A.I.M. (Array Inumbration Mechanics)

JBL A.I.M. (Array Inumbration Mechanics)

Geometrically optimized array-shading technology ensures consistent front-to-back coverage

2,000-watt (peak), fully bridged Class D amplifier with power factor correction and high-linearity inductors

2,000-watt (peak), fully bridged Class D amplifier with power factor correction and high-linearity inductors

Provides clean, efficient system power, superior headroom, low THD and protection from voltage spikes

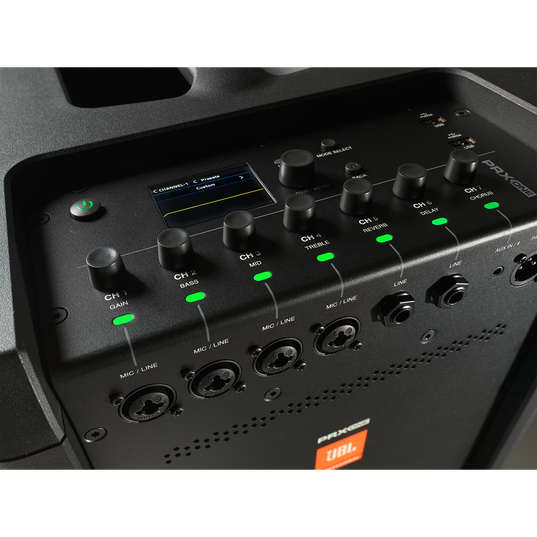

Four high-efficiency, low-noise microphone preamps

Four high-efficiency, low-noise microphone preamps

Maintain constant bandwidth at any gain level

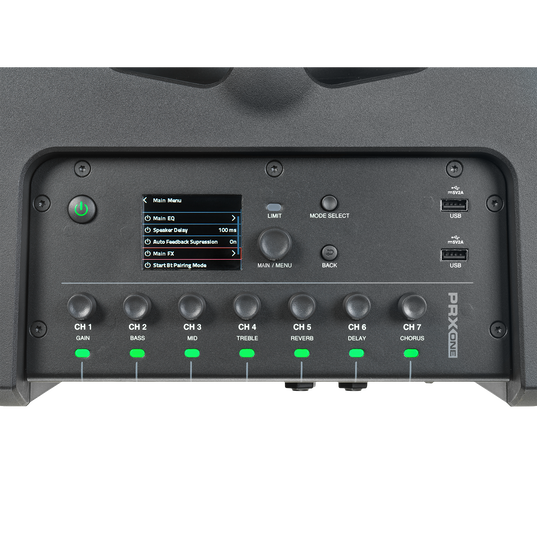

Integrated 7-channel digital mixer with dual-operating mode

Integrated 7-channel digital mixer with dual-operating mode

Gives users full control of their input faders or individual channel controls like bass, mid, treble and effects sends

Powerful Lexicon effects engine

Powerful Lexicon effects engine

Delay, reverb chorus, echo and sub synth, with presets for easy setup

Triple Tier DSP control

Triple Tier DSP control

Offers multi-level user experiences based on knowledge level

dbx DriveRack technology

dbx DriveRack technology

Features AFS (Automatic Feedback Suppression), 8-band master EQ, system limiter, plus gates and compressors on each channel for unrivaled dynamic control

One-touch ducking by Soundcraft

One-touch ducking by Soundcraft

Ensures speech is always heard

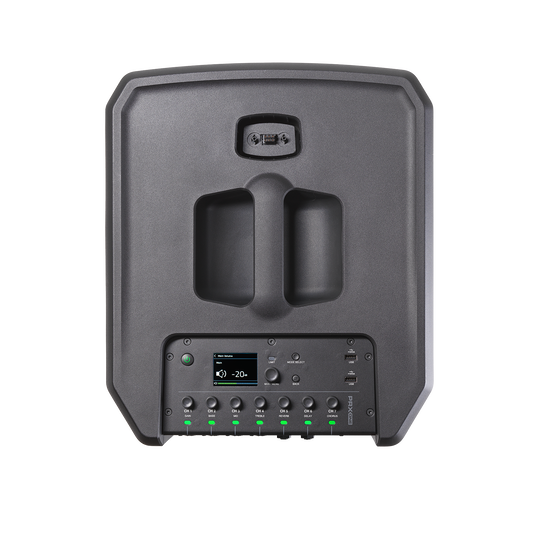

Simple, intuitive full-color LCD screen

Simple, intuitive full-color LCD screen

Provides easy access to all PRX ONE functions

8 user presets

8 user presets

Instantly optimize system sound

Custom-designed high-frequency drivers

Custom-designed high-frequency drivers

Feature copper-capped pole pieces to minimize distortion and smooth, natural high-frequency response

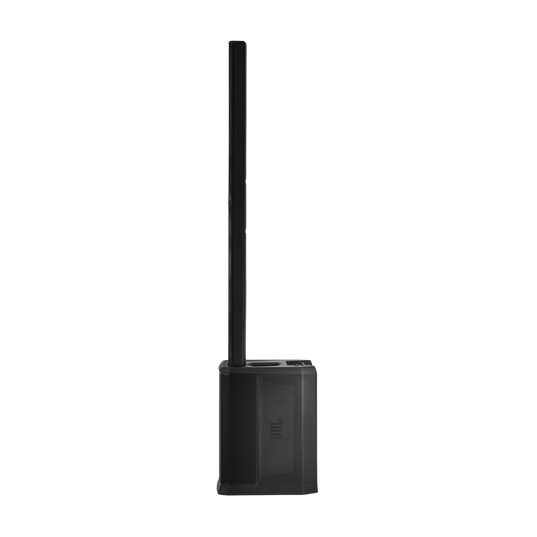

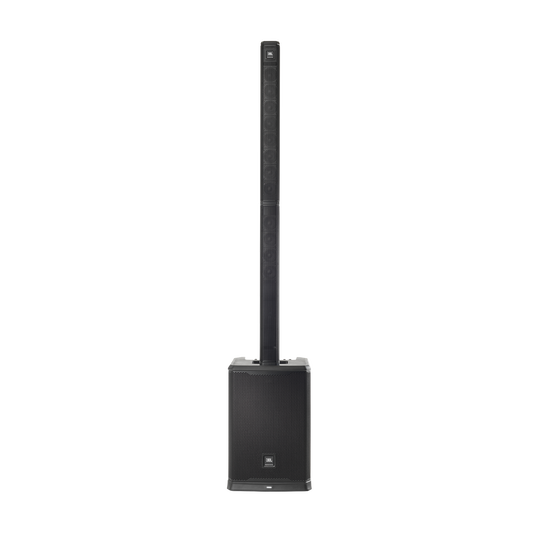

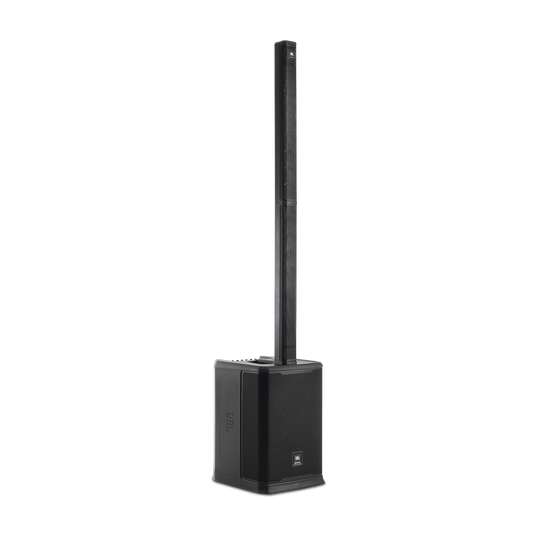

JBL PRX ONE - Black - All-In-One Powered Column PA with Mixer and DSP - Hero

Specs & Downloads

Item# JBL-PRX ONE-NA-LS

Product Description

Sound that Raises the Bar and the Roof

The JBL PRX ONE all-in-one powered column PA features an acoustically optimized column array featuring a 7-channel digital mixer, a full suite of professional DSP, class-leading audio connectivity, Bluetooth functionality and JBL Pro Connect universal app control. Enjoy unmatched power and performance in a sleek, compact package: PRX ONE delivers a stunning 130db max SPL, with consistent front-to-back throw, thanks to its custom-engineered 12-tweeter column array featuring JBL AIM acoustic technology, 12-inch bass-reflex woofer and built-in 2,000-watt (peak) amplifier. Dial in great sound fast, with fewer pieces of gear, using PRX ONE’s full suite of professional Lexicon and dbx effects including reverb, delay, compression and dbx DriveRack technology featuring AFS Pro Automatic Feedback Suppression. Connect microphones, instruments, mobile devices and wireless rigs using PRX ONE’s versatile I/Os (featuring dedicated phantom power and Hi-Z inputs and pro-grade Neutrik connectors) and sophisticated Bluetooth 5.0 features. Work faster and easier with an intuitive Soundcraft-designed dual-mode digital mixer that can be set to general mix functions or channel-strip control, all controllable via app or a built-in color LCD. PRX ONE is ideal for DJs, musicians, entertainment venues, corporate presenters, rental companies and houses of worship. It’s the perfect solution for anyone who demands best-in-class power, acoustic performance, creative control and connectivity in a stylish, full-featured column PA that’s ideal for both installed and portable applications.

Device Compatibility

Bluetooth Yes

General Specifications

Power Rating (W, Continuous) 1000
Power Rating (W, Peak) 2000
Frequency Response Hz (±3 dB) 40 - 20,000
Maximum SPL (peak dB) 130
Coverage Pattern (Nominal) 130° x 30°

Dimensions

Height (in) 33.4
Depth (in) 25.4
Width (in) 18.9
Weight (lbs) 56.6
Height (mm) 850
Width (mm) 482
Depth (mm) 647
Weight (kg) 25.7

Features

Bluetooth Yes
JBL professional tunings and presents available Yes
Mobile app available for iOS and Android Yes
Feedback suppression Yes
Music Ducking Yes

What's in the box?

  • 1 x PRX ONE Woofer Cabinet

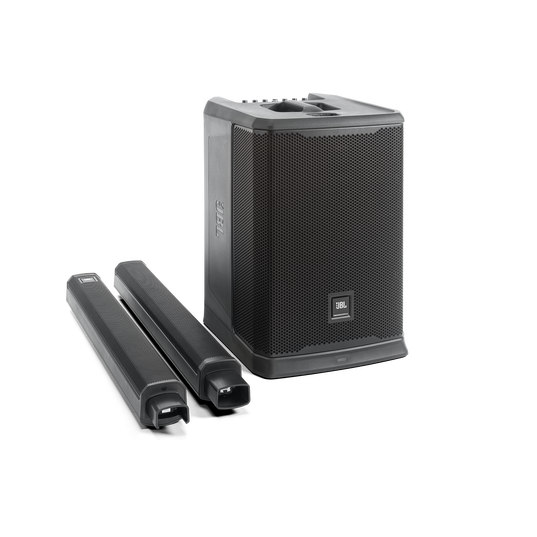

  • 2 x PRX ONE Linear Arrays

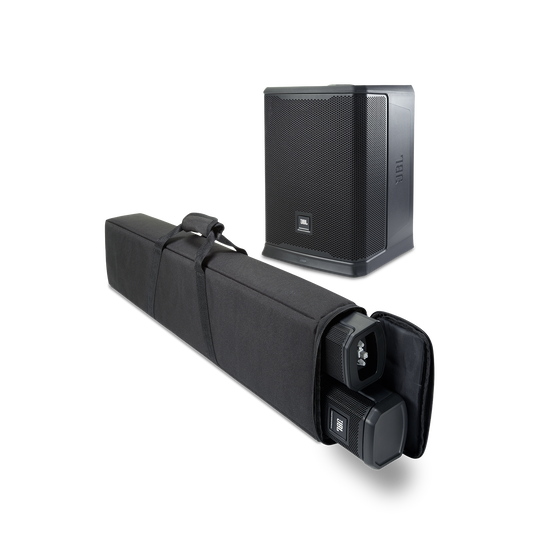

  • 1 x PRX ONE Linear Array Padded Carrying Bag
  • 1 x 10’ (3m) AC Power Cable
  • 1 x Quick Start Guide
