JBL C1PRO

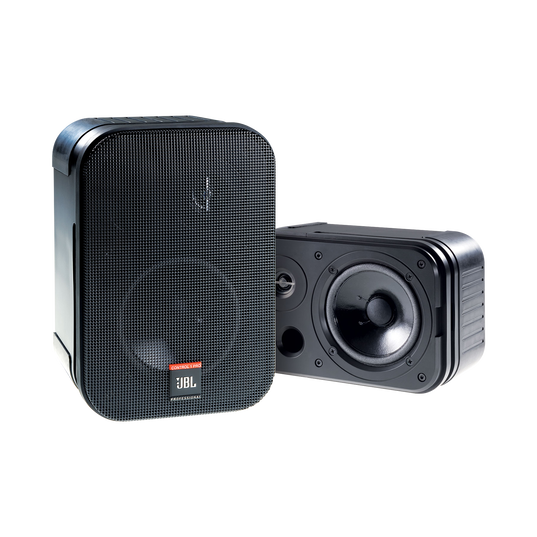

JBL Control 1 Pro

Two-Way Professional Compact Loudspeaker System

Variations



Features

Included wall-mount bracket

Included wall-mount bracket

Enables the unit to be secured against a wall or other flat surface

Magnetically shielded transducers

Magnetically shielded transducers

For use with video and computer monitors, or other magnetically sensitive equipment

Compact size

Compact size

Perfect for commercial audio settings providing top-quality sound while maintaining a discreet appearance.

Specs & Downloads

รายการ# C1PRO

Product Description

Legendary JBL performance in a compact form-factor

Representing the next-generation in professional high-performance, compact loudspeaker systems, the Control® 1 Pro builds on its proud heritage while incorporating the latest innovations in JBL Professional loudspeaker systems design. The Control® 1 Pro features a professional crossover network coupled with professional drivers making it ideal for even the most demanding near-field audio applications. The Control 1 Pro's updated crossover network design provides steeper crossover slopes for exceptional sonic performance and improved consistency throughout the listening area. The included wall-mount bracket enables the unit to be secured against a wall or other flat surface. Moreover, the rugged molded enclosure houses magnetically shielded transducers, making the Control 1 Pro well-suited for use with video and computer monitors, or other magnetically sensitive equipment. NOTE: Priced as each but must be sold as pairs, so two must be ordered.

ข้อมูลทั่วไป

Frequency Range (-10 dB) 80 Hz to 20 kHz
Frequency Response (± 3 dB) I00 Hz - 18 kHz
Power Capacity I50 W
Sensitivity 87 dB SPL, 1 W, 1 m (3.3 ft)
Maximum SPL 108 dB continuous, 114 dB peak
Directivity Factor (Q) 6.0
Directivity Index (DI) 7.8
Nominal Impedance 4 ohms
Crossover Frequency 4.2 kHz
Overload Protection Full-range SonicGuard™ power limiting to protect network and transducers
LF Drivers 135 mm (5.25 in) low frequency loudspeaker
HF Drivers 19 mm (.75 in) polycarbonate dome tweeter
Input Connectors Spring-loaded terminals
Enclosure Material Polypropylene Structural Foam

ขนาด

Height 9.3 in (235 mm)
Width 6.3 in (159 mm)
Depth 5.6 in (143 mm)
Net Weight 4 lbs (1.8 kg) each
Shipping Weight 10 lbs (4.6 kg) pair

มีอะไรอยู่ในกล่อง

  • 2 x JBL Control 1 Pro Speakers
  • 1 x Wall-mount bracket kit
