JBL 3-SERIES STUDIO MONITORS

PRO-QUALITY MONITORING FOR ANY STUDIO OR WORKSPACE

JBL มอบประสบการณ์เสียงในระดับตำนานให้กับสตูดิโอของคุณ ด้วย JBL 3 Series รุ่นใหม่ ที่เป็นลำโพงมอนิเตอร์ขนาดกะทัดรัดสำหรับใช้งานในสตูดิโอ มีเทคโนโลยี JBL Image Control Waveguide ในลำโพง 3 Series MkII ซึ่งให้ผลลัพธ์รายละเอียดของเสียงที่น่าทึ่ง และแม่นยำ อีกทั้งให้ตำแหน่งในการฟังที่กว้างและช่วงไดนามิกที่น่าประทับใจในแบบที่ไม่เคยมีมาก่อน สำหรับ LSR310S ซับวูฟเฟอร์ที่มาพร้อม Slip Stream™ Port ซึ่งได้รับการจดสิทธิบัตรของ JBL มีกำลังไฟ 300 วัตต์ ช่วยเพิ่มเสียงเบสให้ระบบ Moitoring ของคุณให้สมบูรณ์แบบ ไม่ว่าคุณจะทำงานในระบบสเตอริโอ หรือระบบ 2.1 ตระกูลลำโพง 3 Series MkII จะเพิ่มความสามารถในการฟังสำหรับงานที่สำคัญของคุณ และมอบประสบการณ์การมิกซ์เสียงที่สนุกเร้าใจในราคาที่คุณเข้าถึงได้

เปรียบเทียบรุ่นสินค้า

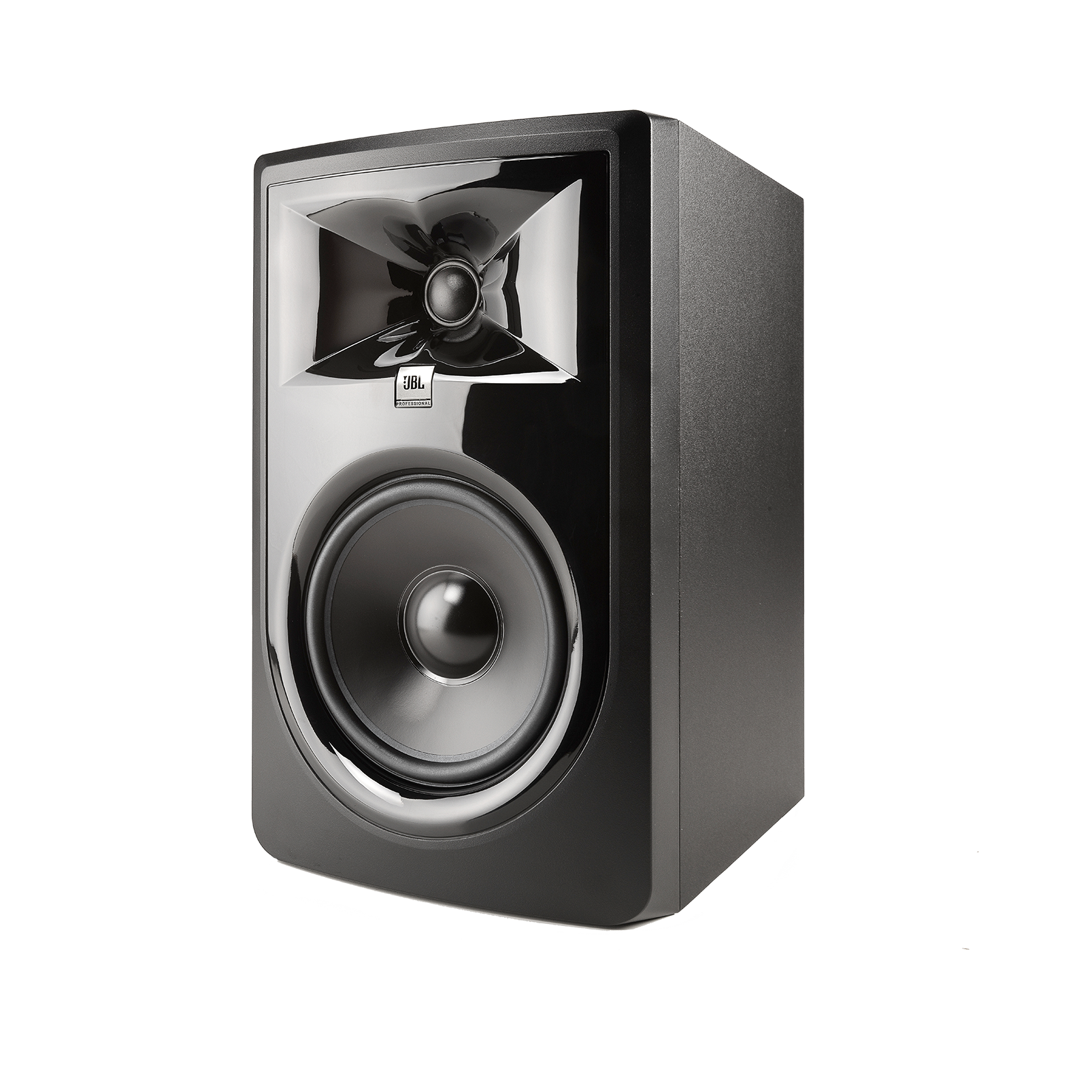

306PMKII-

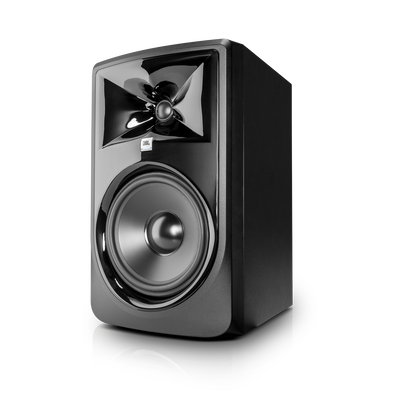

308PMKII-

$MB.langkey.compare.heading

What's in the box

What's in the box
  • 1 x Power cord
  • 1 x Quick setup guide
  • 4 x Peel-off rubber pads
  • 1 x 306P MkII studio monitor
  • 1 x Power cord
  • 1 x Quick setup guide
  • 4 x Peel-off rubber pads
  • 1 x 308P MkII studio monitor

General Specifications

LF Driver Size
165 mm (6.5")
203 mm (8")
HF Driver Size
25 mm (1")
25 mm (1")
Crossover
1425Hz 4th order acoustic Linkwitz-Riley
1800Hz 4th order acoustic Linkwitz-Riley
Frequency Response
47Hz – 20kHz (±3dB)
45Hz – 20kHz (±3dB)
Frequency Range
39Hz – 24kHz (-10dB)
37Hz – 24kHz (-10dB)
Maximum Continuous SPL
92dB
102dB
Maximum Peak SPL
110dB
112dB

Dimensions

Height
361 mm (14.2")
419 mm (16.5")
Width
224 mm (8.8")
254 mm (10")
Depth
282 mm (11.1")
308 mm (12.1")
Net Weight
6.1 kg (13.42 lbs)
8.1 kg (17.87 lbs)

Expand Your Sound

The optional LSR310S subwoofer allows you to extend the bass response of the 3 Series monitors even further. It incorporates the patented JBL Slip Stream™ Port, which works in concert with a custom 10" down-firing driver and a 200 Watt amplifier to add deep, powerful bass to any studio monitor system. The XLF Extended Low Frequency Setting, a JBL first, activates a specially-engineered tuning that emulates the ample bass tuning used in today's dance clubs. The LSR310S offers plenty of other professional features including balanced inputs and outputs, selectable input sensitivity, and a choice of three crossover settings.
