B-8IW

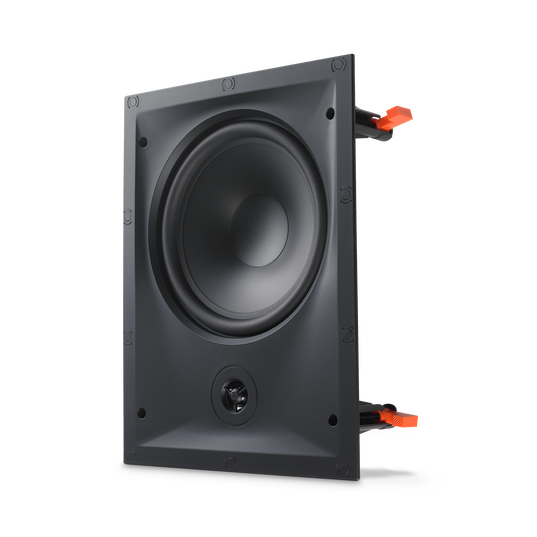

The JBL B-8IW is a 2-way in-wall loudspeaker with a 0.5-inch polymer tweeter and an 8-inch Poly cone woofer. A zero-bezel magnetically attached grille allows the loudspeaker to blend into any dÃĐcor for a clean, modern design. The B Series models are easy to install and provide great JBL sound throughout your home.
Promotions
Variations
Features
0.5-inch Polymer tweeter
6.5-inch Poly cone woofer

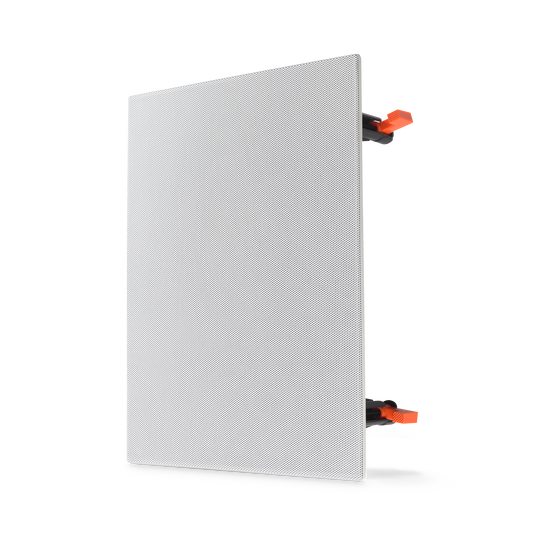

Zero Bezel Grille
Easy Installation
Specs & Downloads
āļĢāļēāļĒāļāļēāļĢ#: JBLB8IWWHT
Product Description
JBL B-8IW
Designed to blend into your décor and crafted for wide sound dispersion, the JBL B-Series in-ceiling and in-wall loudspeakers feature a modern design, are easy to install and deliver JBL Signature sound throughout your home.
āļāđāļāļĄāļđāļĨāļāļąāđāļ§āđāļ
Nominal Impedance
4 ohm
Power (RMS/Peak)
45/160W
Frequency Response
45Hz – 20kHz
Loudspeaker Sensitivity
91dB
Woofer
8" (203mm) Poly woofer
Tweeter
0.5" (13mm) Polymer Tweeter
Cutout Dimensions
11.7” x 8.8” (299mm x 223mm)
Grille Finished Dimensions
10” x 12.9” (255mm x 329mm)
Mounting Depth
3.7" (96mm)
āļĄāļĩāļāļ°āđāļĢāļāļĒāļđāđāđāļāļāļĨāđāļāļ
- Main Unit
- Grille
- Ownerâs Manual
- Wall cut-out template
- Warranty Card
