B-6IW

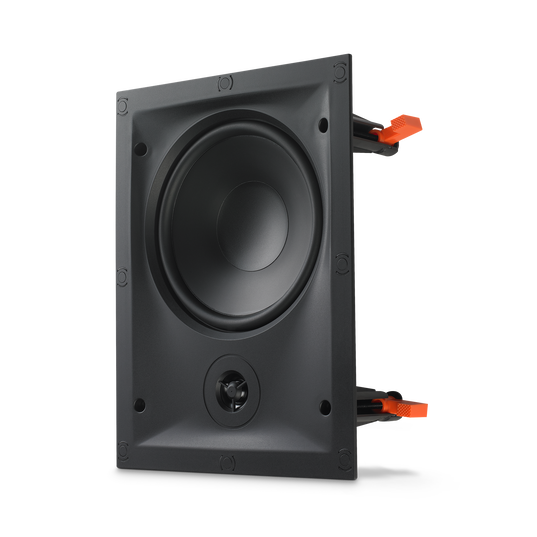

The JBL B-6IW is a 2-way in-wall loudspeaker with a 0.5-inch polymer tweeter and a 6.5-inch Poly cone woofer. A zero-bezel magnetically attached grille allows the loudspeaker to blend into any décor for a clean, modern design. The B Series models are easy to install and provide great JBL sound throughout your home.
Promotions
Variations
Features
0.5-inch Polymer tweeter
6.5-inch Poly cone woofer
Zero Bezel Grille
Easy Installation
Specs & Downloads
รายการ# JBLB6IWWHT
Product Description
JBL B-6IW
Designed to blend into your décor and crafted for wide sound dispersion, the JBL B-Series in-ceiling and in-wall loudspeakers feature a modern design, are easy to install and deliver JBL Signature sound throughout your home.
ข้อมูลทั่วไป
Nominal Impedance
4 ohm
Power (RMS/Peak)
35/150W
Frequency Response
50Hz – 20kHz
Loudspeaker Sensitivity
91dB
Woofer
6.5" (165mm) Poly woofer
Tweeter
0.5" (13mm) Polymer Tweeter
Cutout Dimensions
9.7” x 7.2” (246mm x 182mm)
Grille Finished Dimensions
8.4” x 10.9” (213mm x 277mm)
Mounting Depth
3.3" (84mm)
มีอะไรอยู่ในกล่อง
- Main Unit
- Grille
- Owner’s Manual
- Wall cut-out template
- Warranty Card
