Arena 6IW
JBL ARENA6IW

Arena 6IW

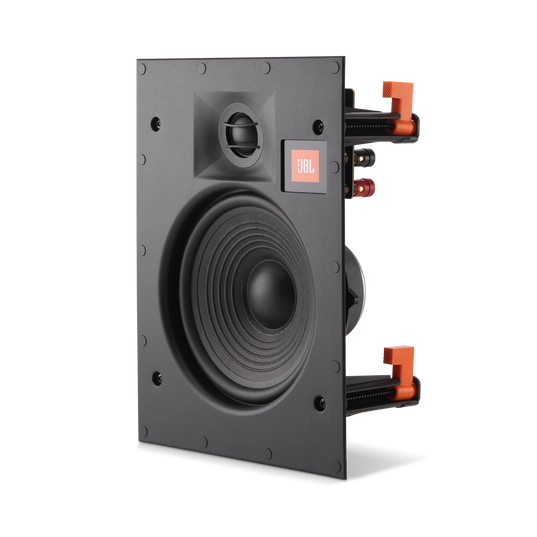

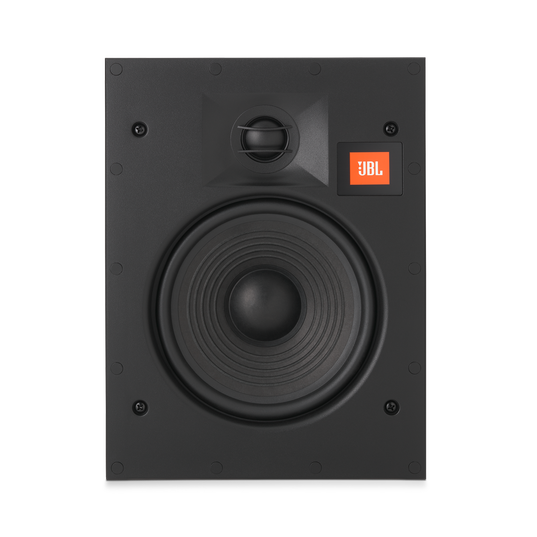

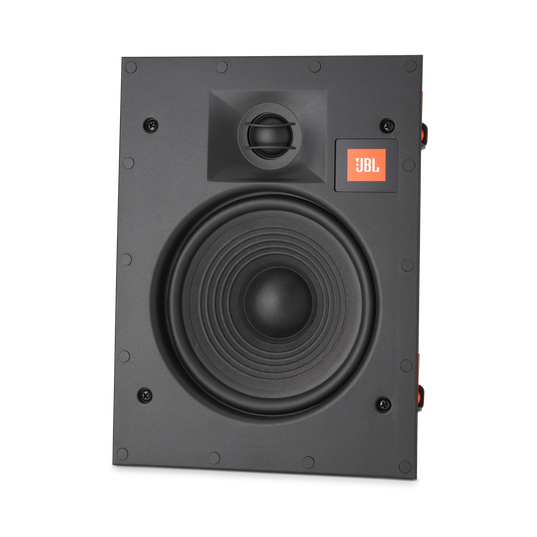

6.5-Inch In-Wall Loudspeaker

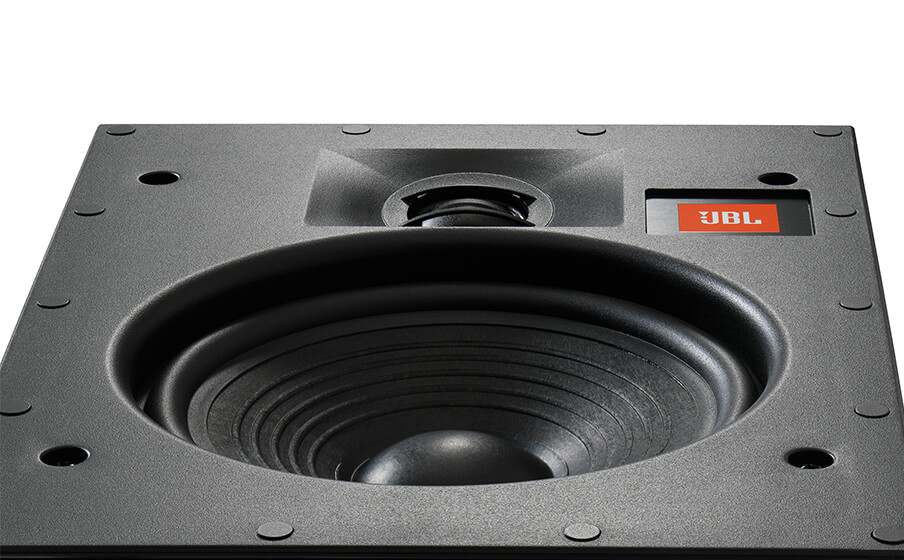

The JBL Arena 6IW features a 1-inch silk dome tweeter with a waveguide to ensure smooth and even coverage across the listening position. A 6.5-inch Polycellulose woofer provides the low end energy to immerse you in room-filling sound. Installation is simple and quick with the XL-2 mounting mechanism and the zero-bezel magnetically attached grille allows the loudspeaker to discreetly blend into any decor.
Variations

Features

Sound Inspired by JBL's lengendary M2 Master Reference Monitor

Sound Inspired by JBL's lengendary M2 Master Reference Monitor

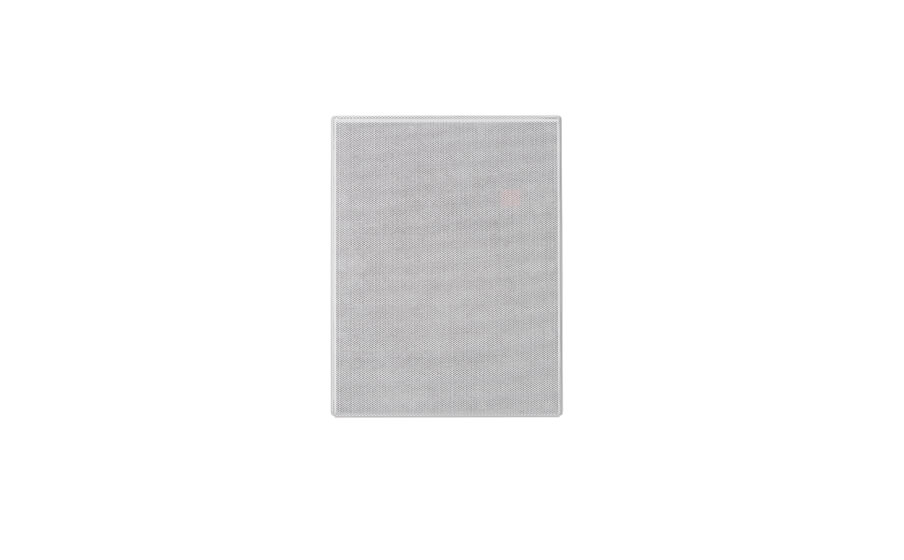

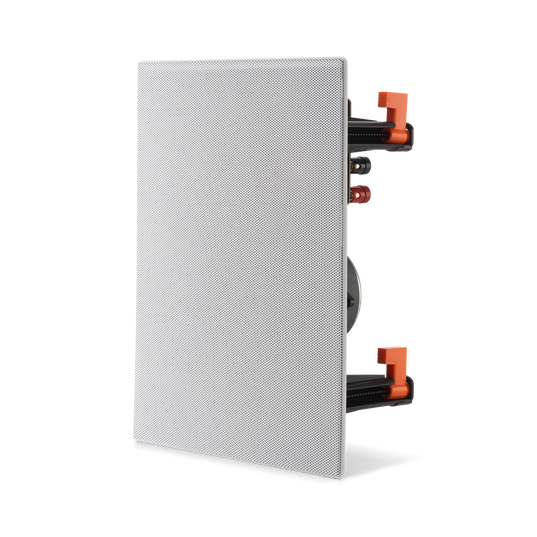

Paintable, nearly invisible zero-bezel magnetic grill

Paintable, nearly invisible zero-bezel magnetic grill

Superior XL-2 installation bracket

Superior XL-2 installation bracket

Specs & Downloads

รายการ# ARENA6IW

Product Description

Arena 6IW

The nearly invisible JBL Arena architectural series speaker, seamlessly built into your custom home audio installation, immerses you in full, room-filling JBL sound.

ข้อมูลทั่วไป

Impedance 8 ohms
Recommended Amplifier Power 80W
Frequency Response 38Hz - 20kHz

Audio Specifications

Loudspeaker Sensitivity 86dB 2.83V @ 1m
Low Frequency Driver Size and Material 6-1/2" (165mm) Polycellulose Woofer
High Frequency Driver Size and Material 1" (25mm) Silk-Dome Tweeter

มีอะไรอยู่ในกล่อง

  • Main Unit
  • Magnetic Grill
  • Owners Manual
  • Printed Mounting Template
  • Warranty Card

คู่มือและดาวน์โหลด

คู่มือเจ้าของล่าสุด คู่มือเริ่มต้นฉบับย่อ และเอกสาร
