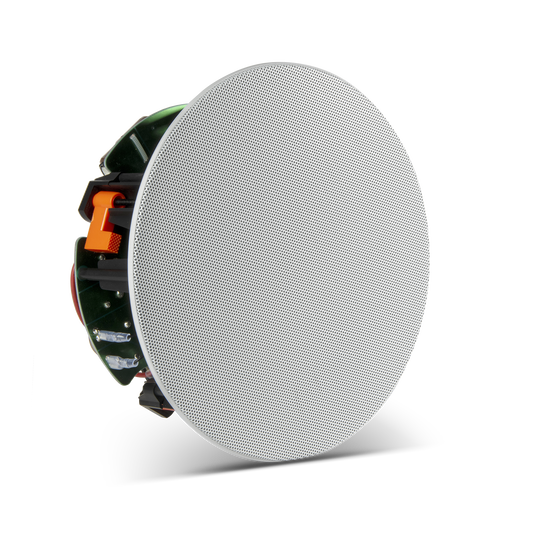

Stage 260C
The Stage 260C has a 6.5" (165mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with an acoustic lens waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.
Promotions
Variations

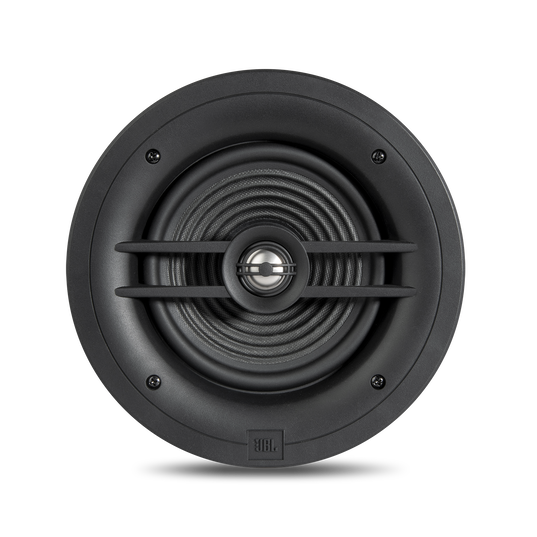

_Front_No_Grille_1605x1605.png?sw=537&sfrm=png "Stage 260C - Black - 2-way 6.5in (166mm) In-Ceiling Loudspeaker - Front")

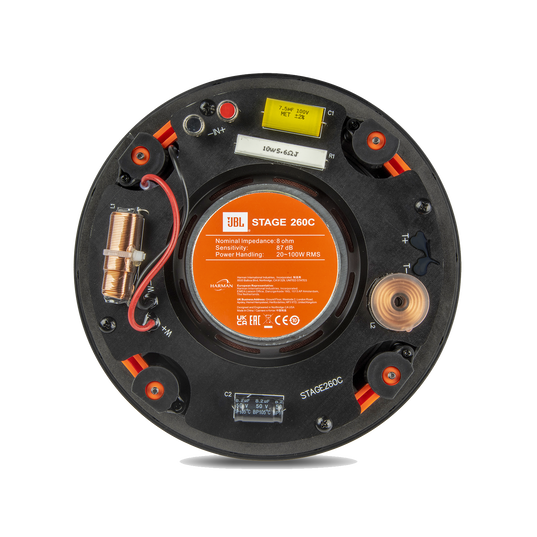

_Rear_1605x1605.png?sw=537&sfrm=png "Stage 260C - Black - 2-way 6.5in (166mm) In-Ceiling Loudspeaker - Back")

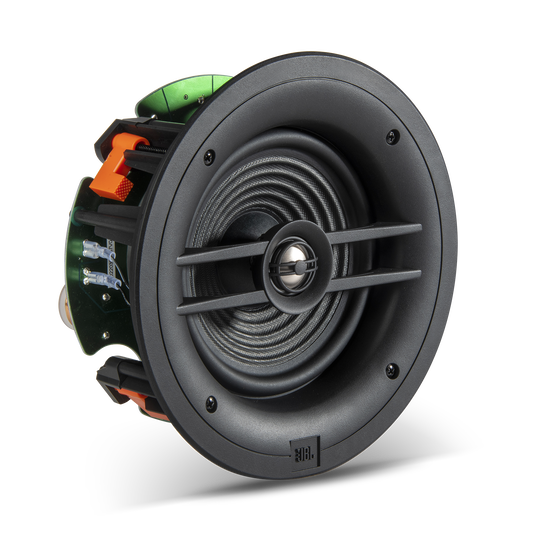

_Angled_No_Grille_1605x1605.png?sw=537&sfrm=png "Stage 260C - Black - 2-way 6.5in (166mm) In-Ceiling Loudspeaker - Left")

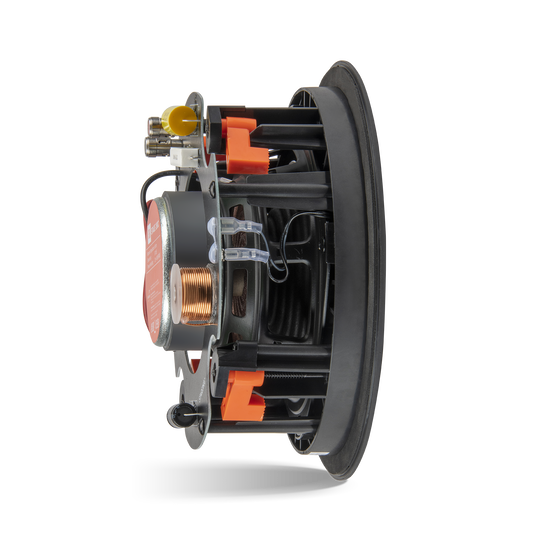

_Side_1605x1605.png?sw=537&sfrm=png "Stage 260C - Black - 2-way 6.5in (166mm) In-Ceiling Loudspeaker - Right")
Features

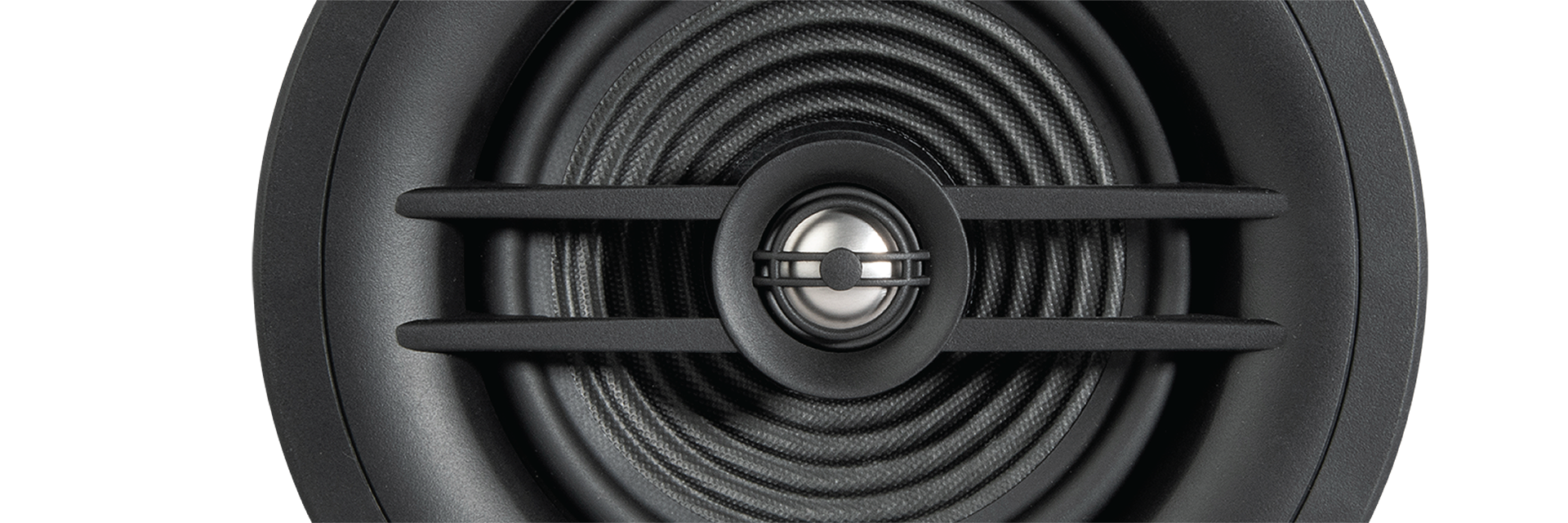

1" (25mm) Aluminum dome with acoustic lens waveguide

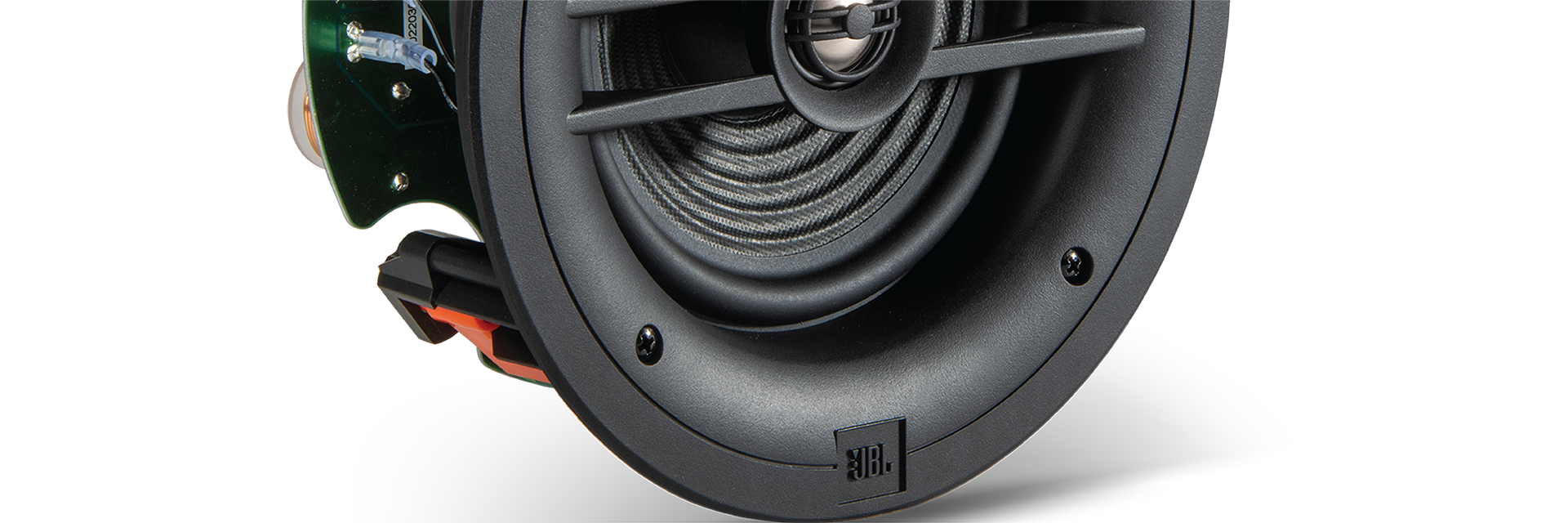

6.5" (165mm) Polycellulose cone woofer

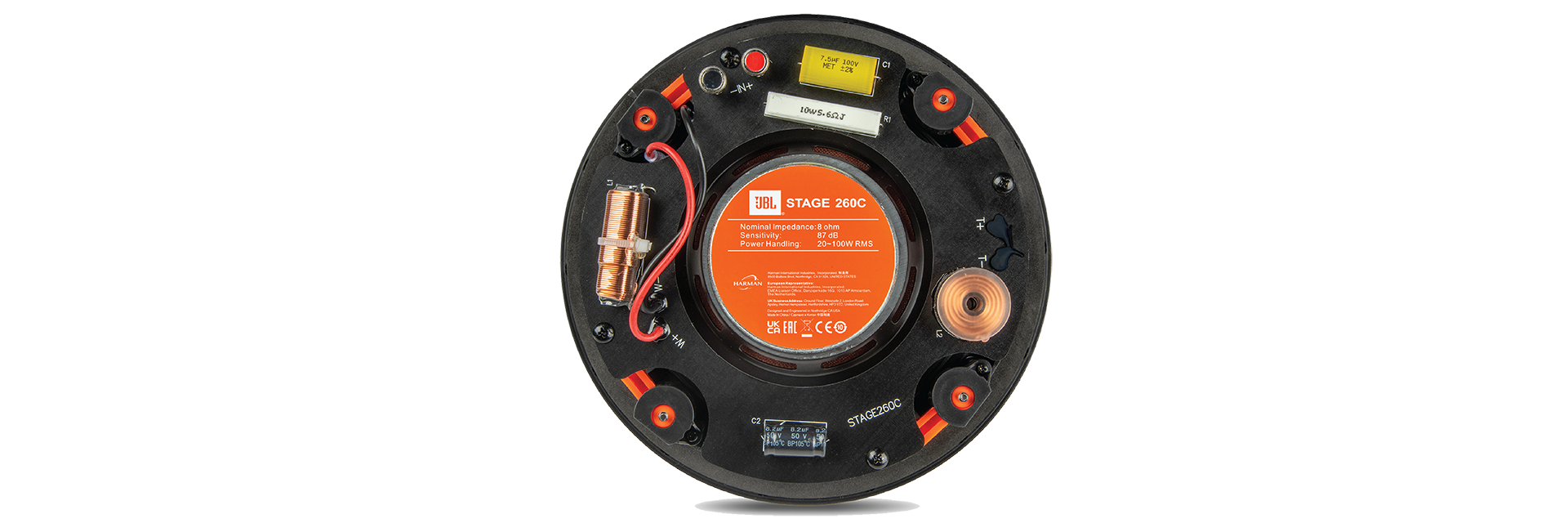

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.

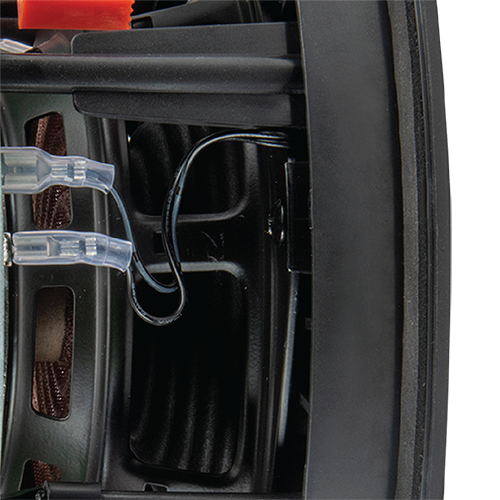

Rigid Baffle design with acoustic smoothing for improved transducer integration

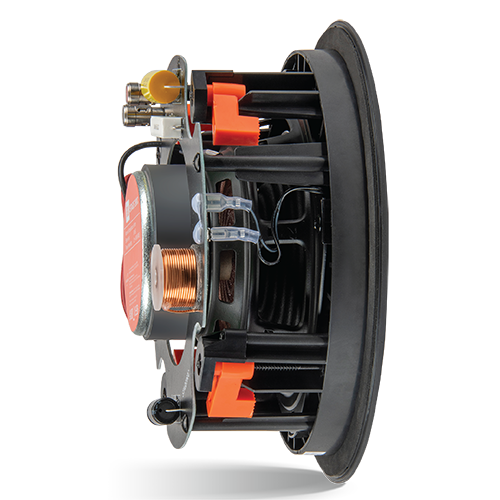

XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.

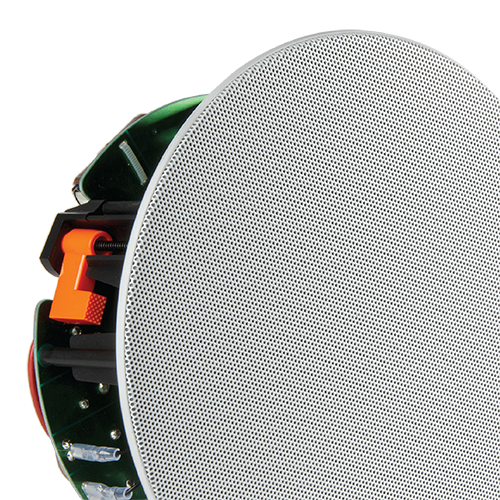

Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance
Specs & Downloads
รายการ# JBL260C
Product Description
Stage 260C
The Stage 260C has a 6.5" (165mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with an acoustic lens waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.
ข้อมูลทั่วไป
High Frequency Transducer
1" (25mm) Aluminum dome with Acoustic Lens
Low Frequency Transducer
6.5" (165mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range)
20-100W RMS
Frequency Response
50Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m)
87dB
Nominal Impedance
8ohm
Crossover Frequency
3000Hz
Inputs
Nickel-plated spring-loaded connectors
Grille Dimensions
Dia
Cutout Dimensions
Dia
Mounting Depth
3.9in (100mm)
Product Weight (Kg)
1.9Kg
Shipping Carton Dimensions
L 11in (280mm) x W 11in (280mm) x H 5.4in (136mm)
Shipping Carton Weight
5.6lbs (2.54Kg)
