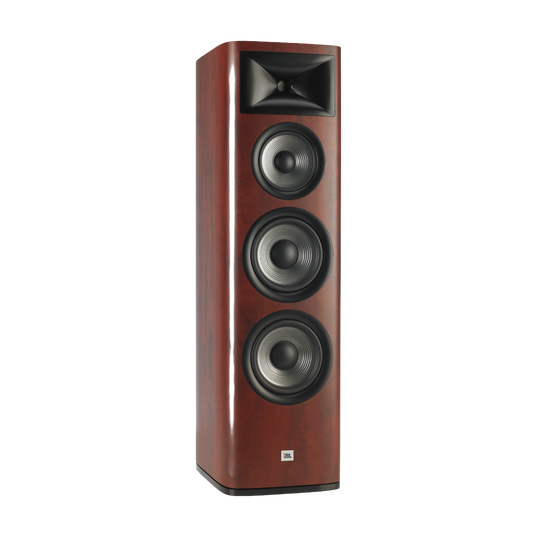

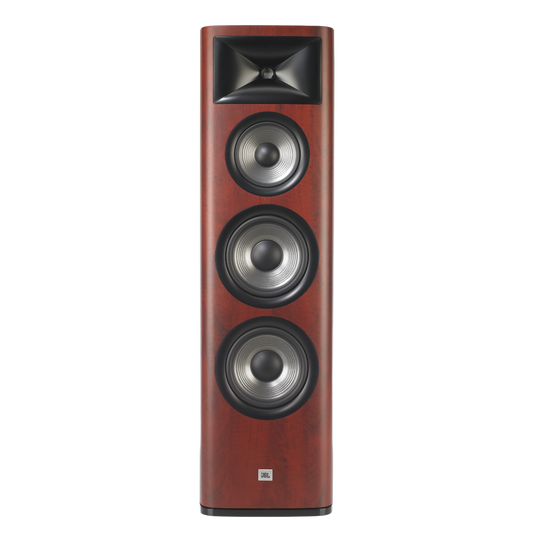

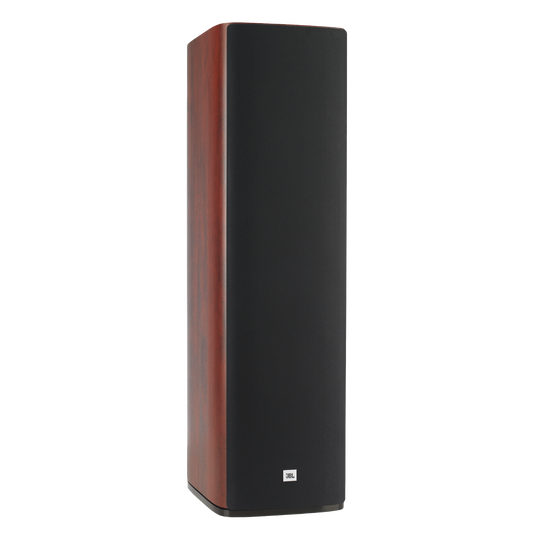

Studio 698
The JBL Studio 698 is a high-performance floorstanding loudspeaker utilizing JBL's 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented with a 6-inch midrange driver and dual 8-inch PolyPlas cone woofers. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.
Promotions
Variations
- ใหม่
Features
Top-graded PolyPlass cones
High-quality sounding compression drivers

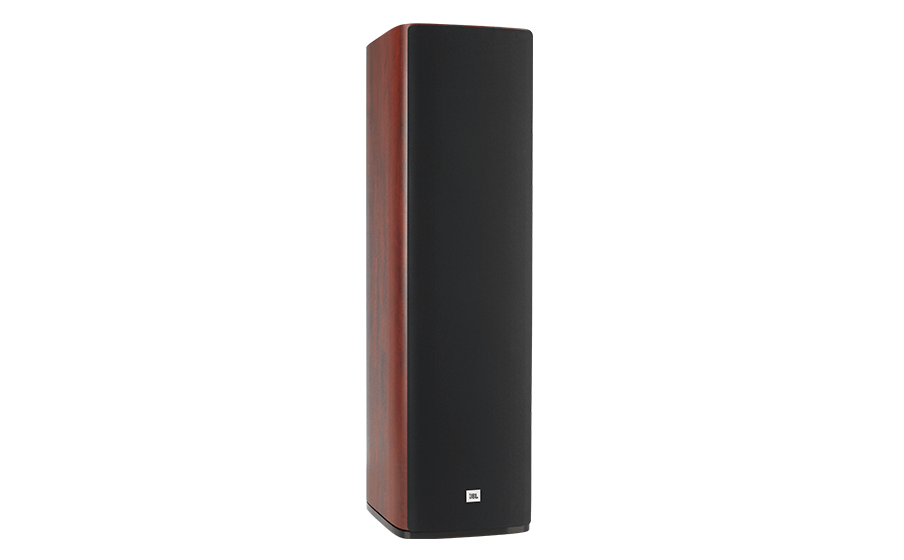

New, appealing form factor
High-definition imaging Waveguide with high-frequency compression driver
Specs & Downloads
รายการ# JBLS698W
Product Description
Studio 698
The new JBL Studio 6 speaker system is everything your inner audiophile was hoping for. Complete with advanced PolyPlas cones, powerful acoustics speaker drivers, and fitted with an all-new, high-definition imaging waveguide using a high-frequency compression driver, your home listening experience will never be quite the same.
ข้อมูลทั่วไป
Dual 8", 6" mid, 3-way compression driver floor standing loudspeaker
มี
6" (152mm) PolyPlas Mid-range Transducer
มี
Dual 8” (203mm) PolyPlas cone Low-Frequency Transducer
มี
High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver
มี
Recommended Amplifier Power
Max 250W
Frequency Response
36Hz – 40kHz
Sensitivity
90dB @ 1M, 2.83V
Nominal Impedance
6 Ohms
Crossover Frequencies
320 Hz, 1.8 kHz
Enclosure Type

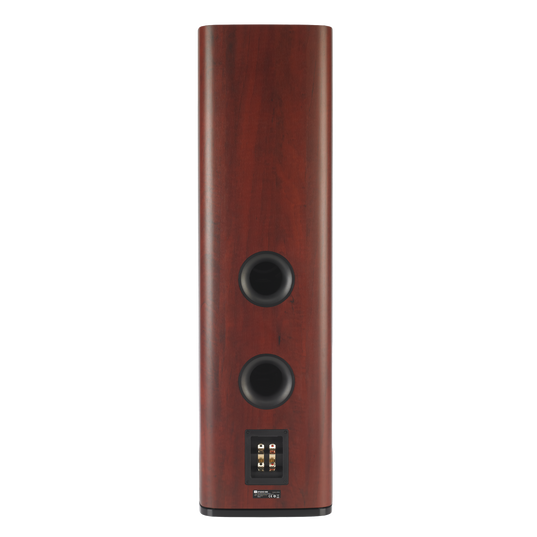

Bass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)
300 x 400 x 1058mm
มีอะไรอยู่ในกล่อง
- 1 x JBL Studio 698 Floor Standing Loudspeaker
- 4 x Carpet Spikes
- 4 x Feet Pads
- 1 x Owner’s Manual
- 1 x Warranty Card
คู่มือและดาวน์โหลด
คู่มือเจ้าของล่าสุด คู่มือเริ่มต้นฉบับย่อ และเอกสาร
