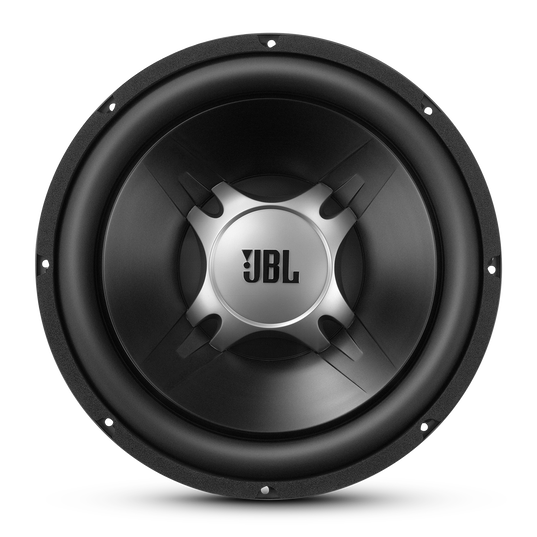

JBL GT5-12

GT5-12

1100-Watt, 12" Single-Voice-Coil Subwoofer

Variations



Features

Big bass with Polypropylene woofer cone

Big bass with Polypropylene woofer cone

Road noise can destroy realistic audio that always requires true low frequencies. Polypropylene delivers rigidity, with good internal damping, and complete weather-resistance. You get an impossible-to-miss increase in thumping bass.

Outstanding audio output, low distortion

Outstanding audio output, low distortion

With 250 watts RMS and 1100 watts of peak power handling, the GT5-12 changes the experience of listening to your favorite music in your car. And a progressive spider gives better control for lower distortion at excursion limits.

Exceptional venting for increased power handling

Exceptional venting for increased power handling

Woofer motor structures heat up during use, causing distortion, or power compression that reduces music’s dynamic range, robbing the sound of realism. JBL uses vented motor structures and polepieces that get rid of more heat to deliver more serious bang.

Enclosure up to JBL Professional standards

Enclosure up to JBL Professional standards

It’s built to the same exacting standards as JBL professional audio boxes with 3/4" medium-density fiberboard construction, and high-quality binding-post terminals. Wide-bandwidth design provides more output between 20Hz and 40Hz. You get all the bass you’ve paid for.

Accurate frequency response

Accurate frequency response

With a frequency response of 23Hz – 450Hz, the GT5-12 reproduces deep, teeth-rattling bass tones without distortion.

Specs & Downloads

รายการ#: GT5-12

ข้อมูลทั่วไป

Size 12"
Series GT5

Audio Specifications

Peak Power 1100W
Nominal Impedance 4 ohms
Power Handling (RMS) 275W
Frequency Response 27Hz–450Hz
Power Handling (Peak) 1100W
Sensitivity (2.83V/1m) 90dB

ขนาด

เส้นผ่าศูนย์กลางด้านนอก 12-5/16 นิ้ว มี
เส้นผ่าศูนย์กลางด้านนอก 313 มม มี
ความลึกที่ต้องการสำหรับติดตั้ง 6-7/16 นิ้ว มี
ความลึกที่ต้องการสำหรับติดตั้ง 164 มม. มี
เส้นผ่าศูนย์กลางที่ต้องตัดสำหรับติดตั้ง 286 มม. มี
เส้นผ่าศูนย์กลางที่ต้องตัดสำหรับติดตั้ง 11-1/4 นิ้ว มี

มีอะไรอยู่ในกล่อง

  • (1) GT5-12 12” Single 4-Ohm Subwoofer
  • (1) Owner's Manual

คู่มือและดาวน์โหลด

คู่มือเจ้าของล่าสุด คู่มือเริ่มต้นฉบับย่อ และเอกสาร
