Stage 280CSA
The angled design of the Stage 280CSA allows for accurate aiming of the 8" (200mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with acoustic lens waveguide towards the listening area. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.
Promotions
Variations
 Angled with Grille - 1605x1605.png?sw=537&sfrm=png "Stage 280CSA - Black - 2-way 8in (203mm) Angled In-Ceiling Loudspeaker - Hero")

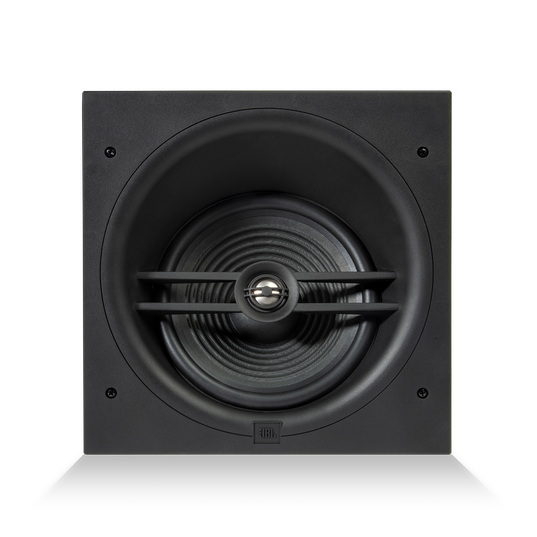

 Front No Grille - 1605x1605.png?sw=537&sfrm=png "Stage 280CSA - Black - 2-way 8in (203mm) Angled In-Ceiling Loudspeaker - Front")

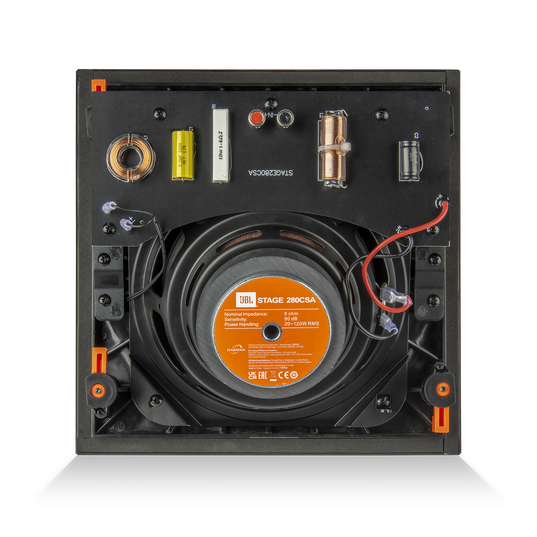

 Rear - 1605x1605.png?sw=537&sfrm=png "Stage 280CSA - Black - 2-way 8in (203mm) Angled In-Ceiling Loudspeaker - Back")

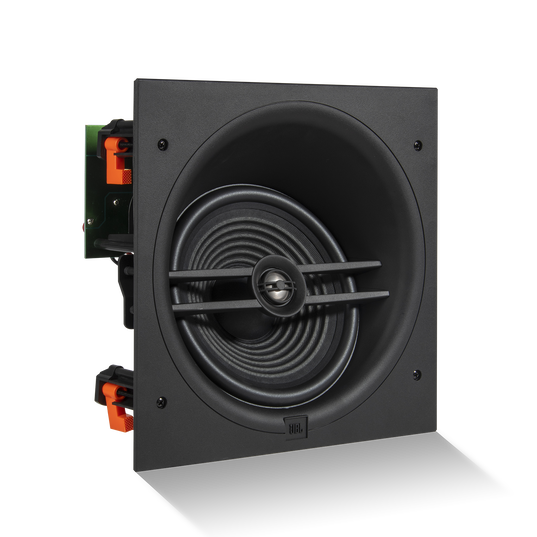

 Angled No Grille - 1605x1605.png?sw=537&sfrm=png "Stage 280CSA - Black - 2-way 8in (203mm) Angled In-Ceiling Loudspeaker - Left")

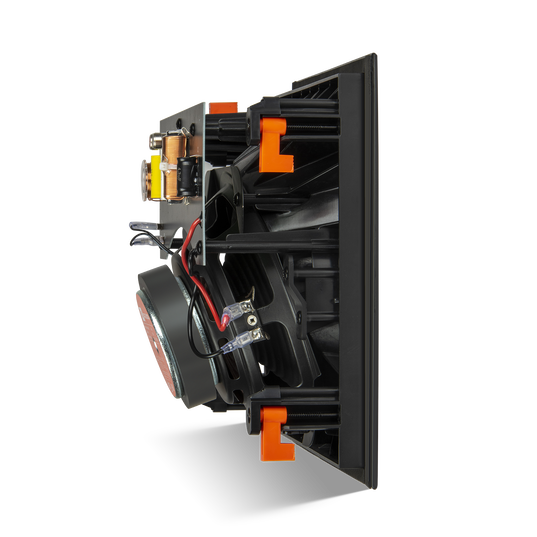

 Side - 1605x1605.png?sw=537&sfrm=png "Stage 280CSA - Black - 2-way 8in (203mm) Angled In-Ceiling Loudspeaker - Right")
Features
Angled Baffle allows for accurate aiming towards the listening area
1" (25mm) Aluminum dome with acoustic lens waveguide
8" (200mm) Polycellulose cone woofer
Rigid Baffle design with acoustic smoothing for improved transducer integration
XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.
Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance
Specs & Downloads
āļĢāļēāļĒāļāļēāļĢ#: JBL280CSA
Product Description
Stage 280CSA
The angled design of the Stage 280CSA allows for accurate aiming of the 8" (200mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with acoustic lens waveguide towards the listening area. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.
āļāđāļāļĄāļđāļĨāļāļąāđāļ§āđāļ
High Frequency Transducer
1" (25mm) Aluminum dome with Acoustic Lens
Low Frequency Transducer
8" (200mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range)
20-120W RMS
Frequency Response
42Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m)
90dB
Nominal Impedance
8ohm
Crossover Frequency
2900Hz
Inputs
Nickel-plated spring-loaded connectors
Grille Dimensions
H 11.4in (289mm) x W 11.4in (289mm)
Cutout Dimensions
H 10.2in (260mm) x W 10.2in (260mm)
Mounting Depth
5.4in (138mm)
Product Weight (Kg)
2.9Kg
Shipping Carton Dimensions
L 13.6in (346mm) x W 13.6in (346mm) x H 6.5in (166mm)
Shipping Carton Weight
8.42lbs (3.82Kg)
