Stage 260W
JBL JBL260W

Stage 260W

2-way 6.5in (166mm) In-Wall Loudspeaker

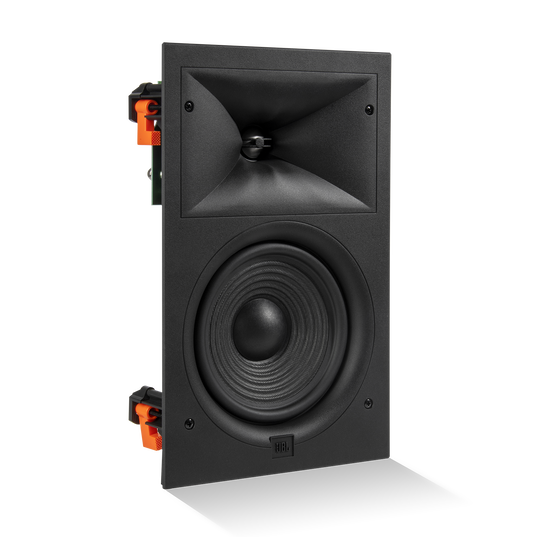

The Stage 260W has a 6.5" (165mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with an acoustic lens and HDI™ waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
Variations

Features

1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide

1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide

6.5" (165mm) Polycellulose cone woofer

6.5" (165mm) Polycellulose cone woofer

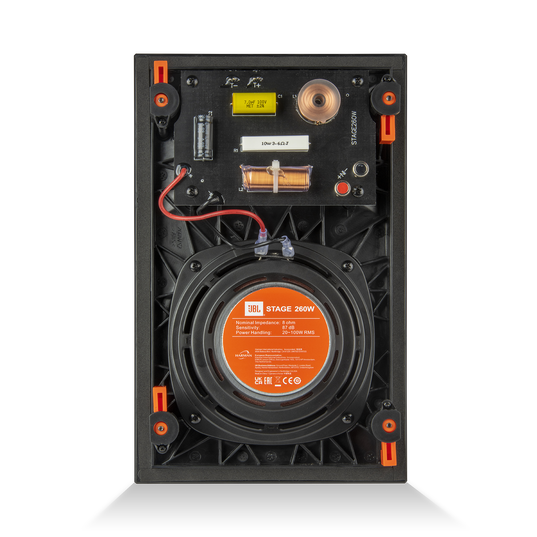

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.

Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.

Rigid Baffle design with acoustic smoothing for improved transducer integration

Rigid Baffle design with acoustic smoothing for improved transducer integration

XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.

XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material.

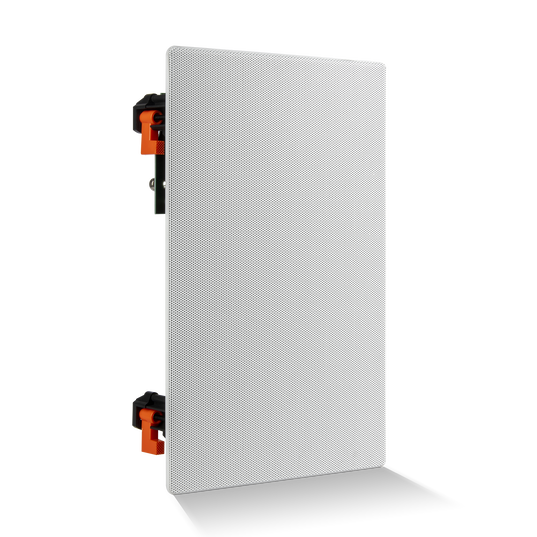

Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance

Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance

Specs & Downloads

รายการ# JBL260W

Product Description

Stage 260W

The Stage 260W has a 6.5" (165mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with an acoustic lens and HDI™ waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.

ข้อมูลทั่วไป

High Frequency Transducer 1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) Waveguide
Low Frequency Transducer 6.5" (165mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range) 20-100W RMS
Frequency Response 50Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m) 87dB
Nominal Impedance 8ohm
Crossover Frequency 1900Hz
Inputs Nickel-plated spring-loaded connectors
Grille Dimensions H 13.3in (339mm) x W 8.5in (217mm)
Cutout Dimensions H 12.2in (311mm) x W 7.2in (184mm)
Mounting Depth 3.6in (92mm)
Product Weight (Kg) 2.2Kg
Shipping Carton Dimensions L 15.6in (396mm) x W 10.8in (274mm) x H 5.1in (130mm)
Shipping Carton Weight 6.48lbs (2.94Kg)
