Frequency Response
-1.5 dB @ 48Hz – 23kHz
Frequency Range
39Hz – 36 kHz
Max SPL
(80 Hz - 20 kHz) >101 dB SPL / 1m
Maximum Peak SPL
(80 Hz - 20 kHz) >107 dB SPL / 1m

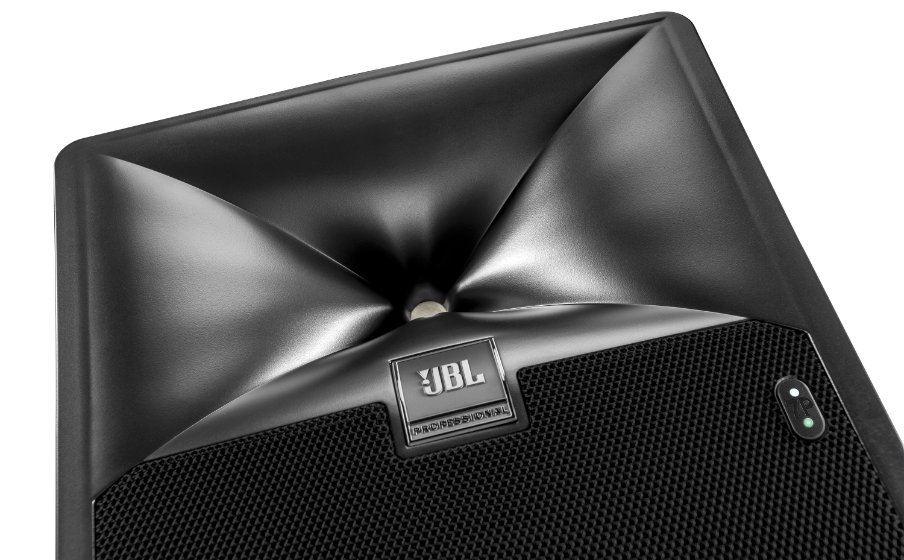

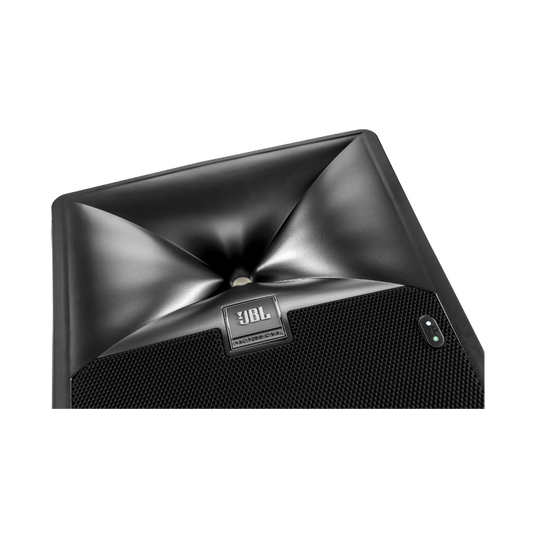

HF Driver
2409H

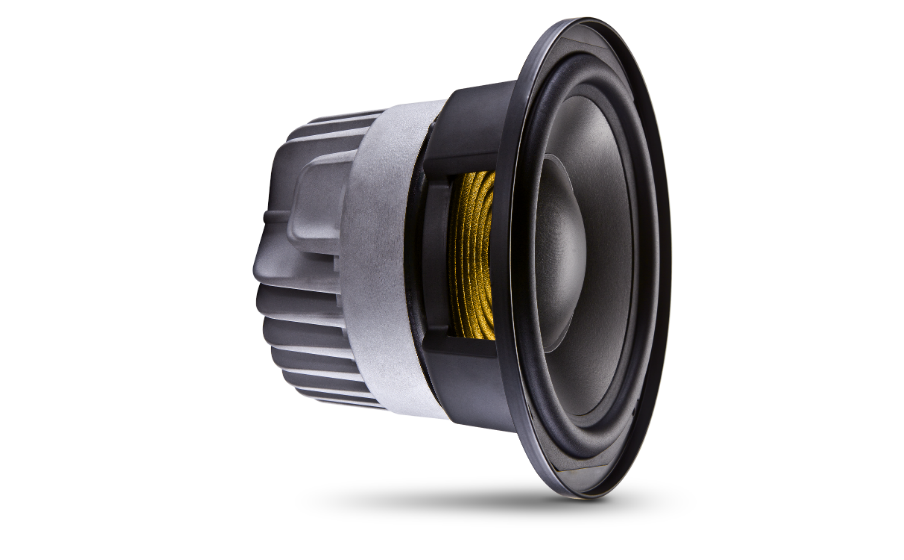

LF Driver
725G
Dividing Network Transition Frequency
1.9 kHz

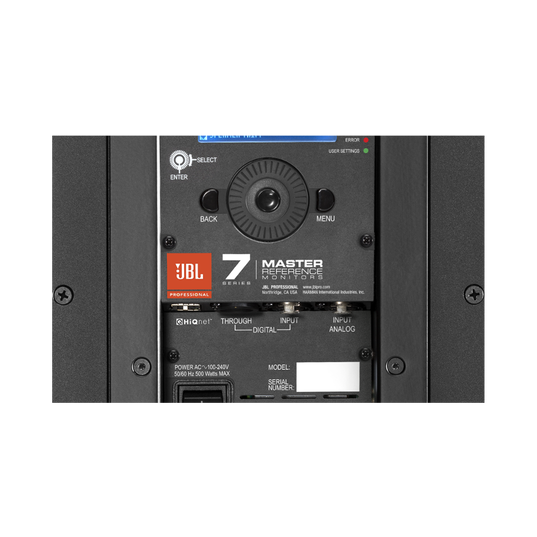

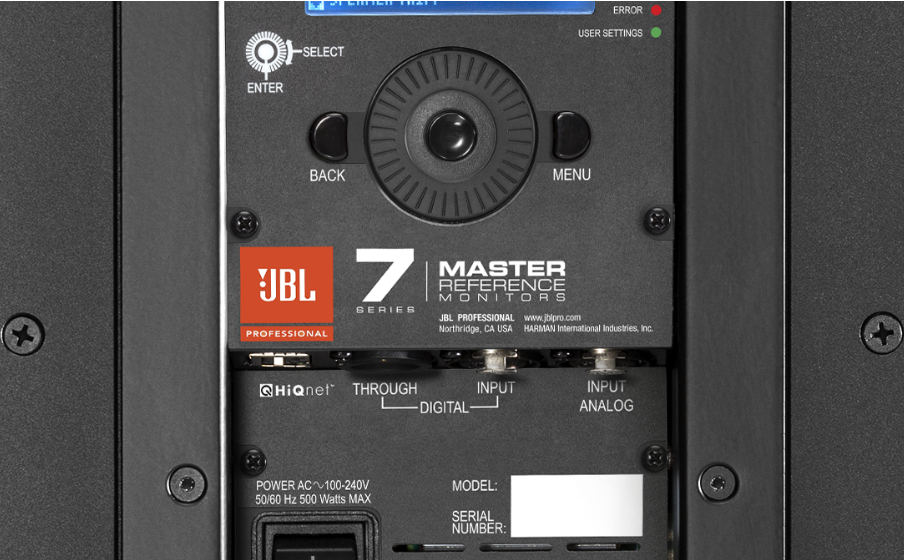

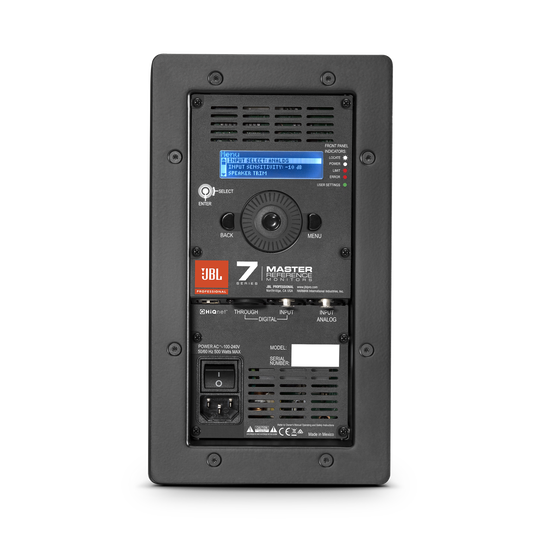

Input Types
1 x XLR balanced analog audio input ; 1 x XLR AES3 format digital input with 1 x XLR pass-through output ; Digital input will accept sample rates up to 192 kHz
Enclosure
Birch plywood reinforced for mounting
Mounting
Top, bottom and rear mounting points. 2-hole mounting pattern
