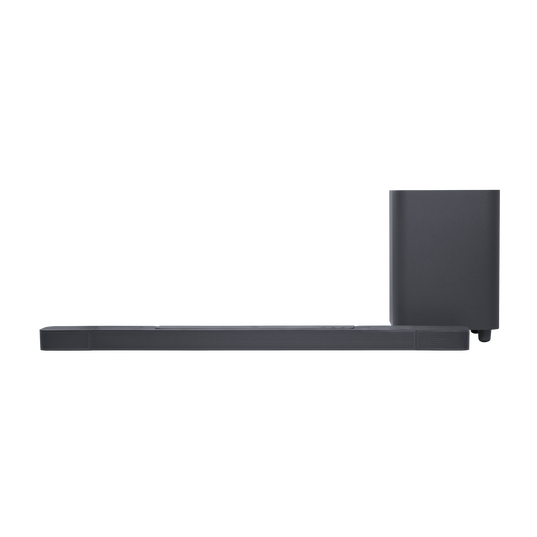

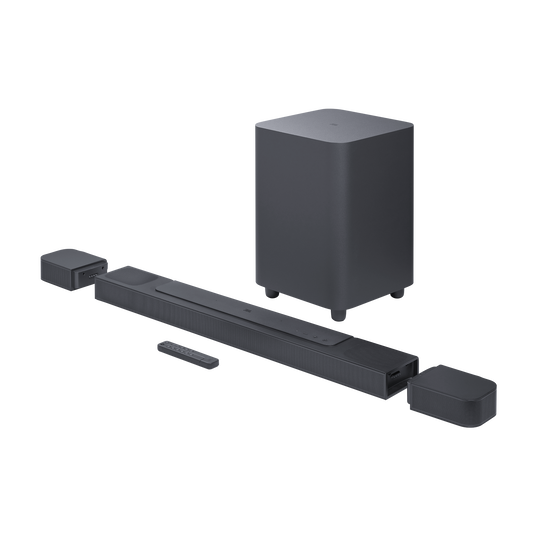

JBL BAR 800

5.1.2-channel soundbar with detachable surround speakers and Dolby Atmos®

Variations
Promotions



Features

True Dolby Atmos® Surround Sound

True Dolby Atmos® Surround Sound

Immerse yourself in theater-quality 3D sound. With two up-firing drivers, the JBL Bar 800 delivers true Dolby Atmos® 3D surround sound.

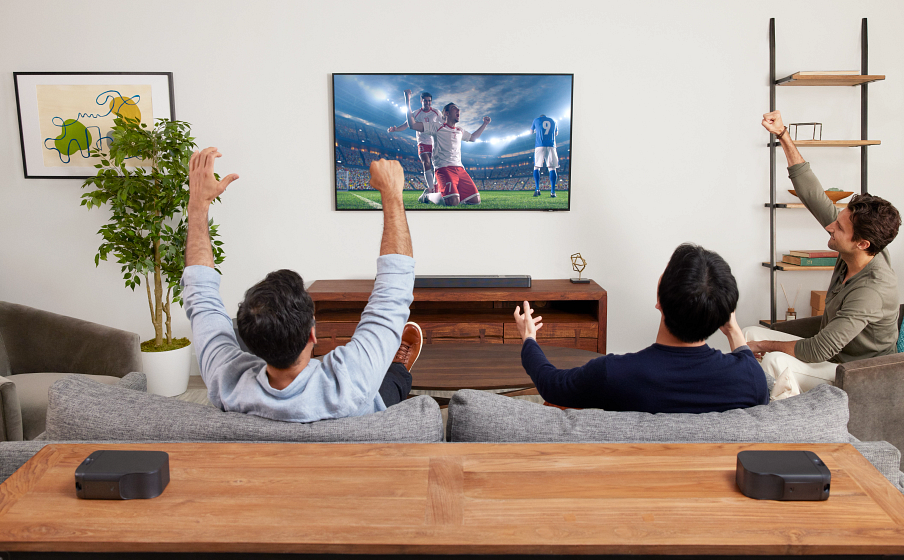

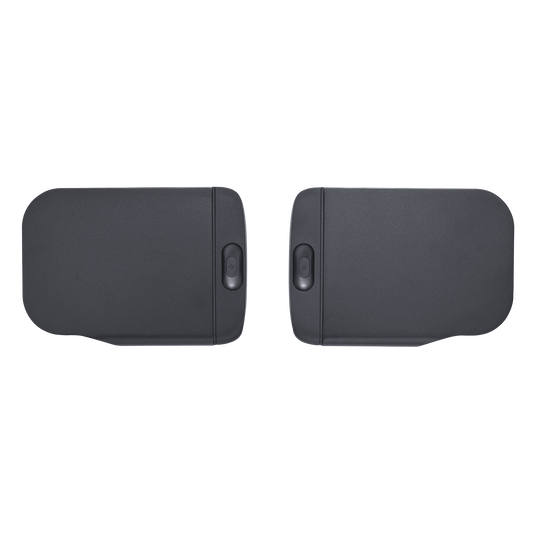

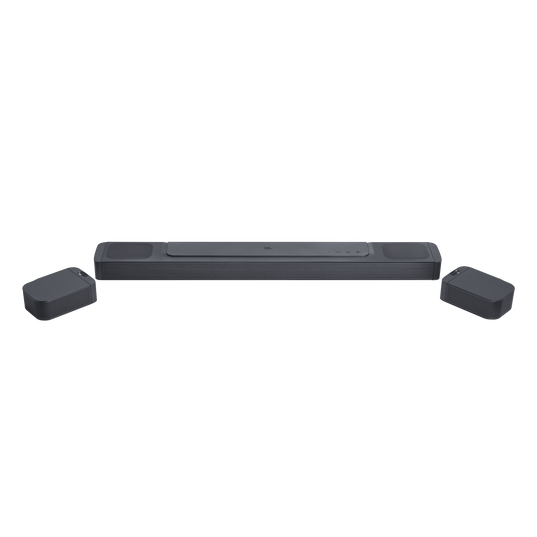

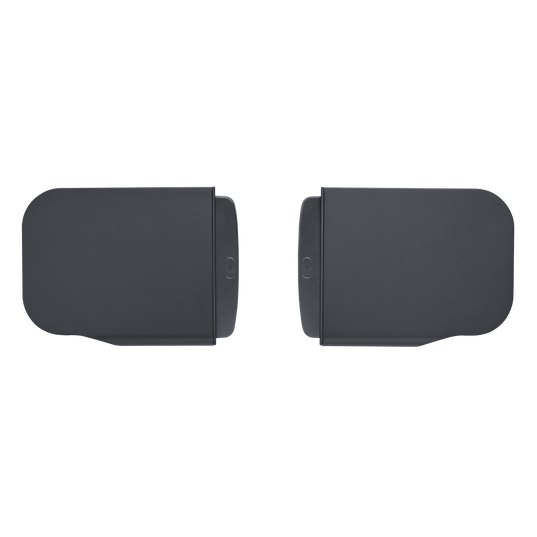

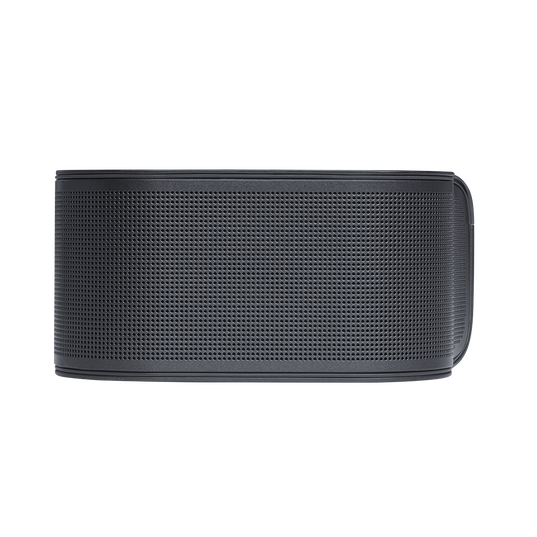

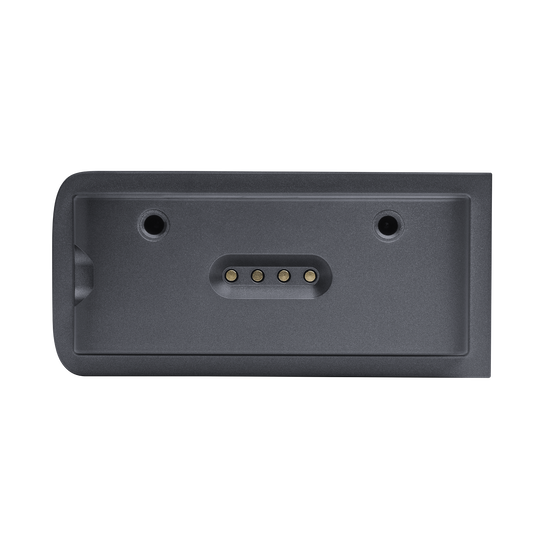

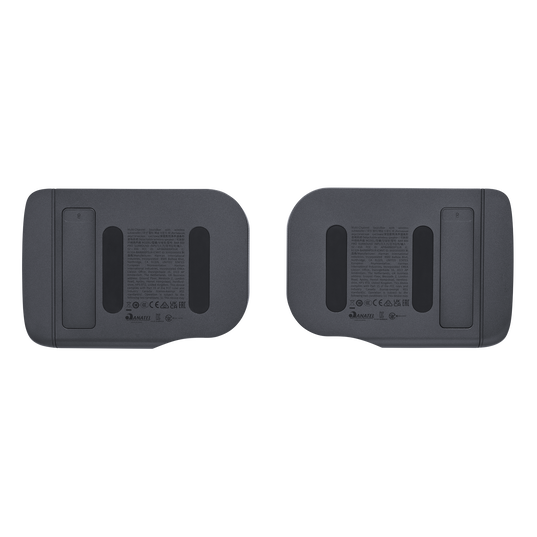

Real surround sound with detachable surround speakers

Real surround sound with detachable surround speakers

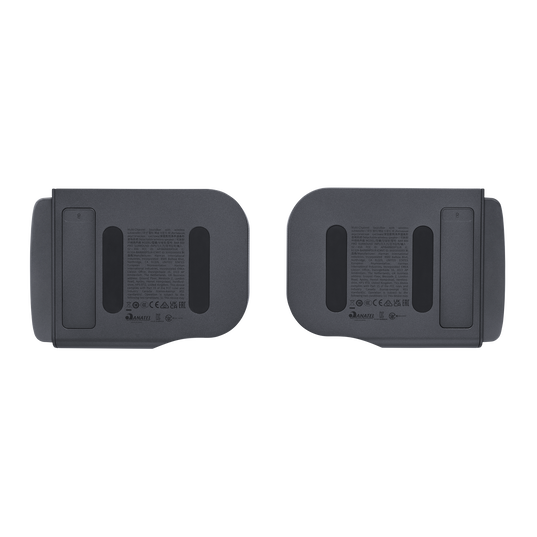

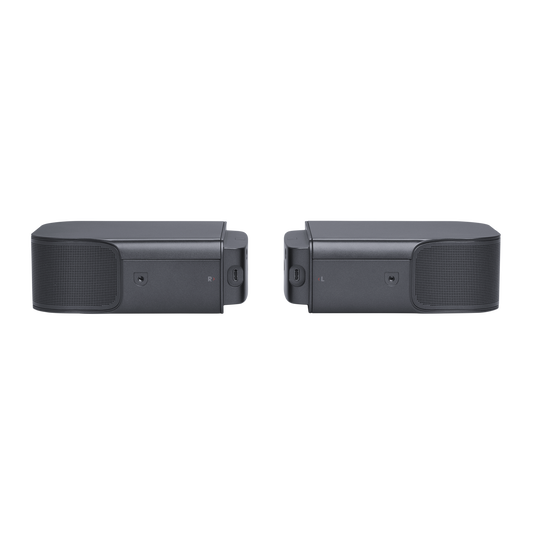

Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio.

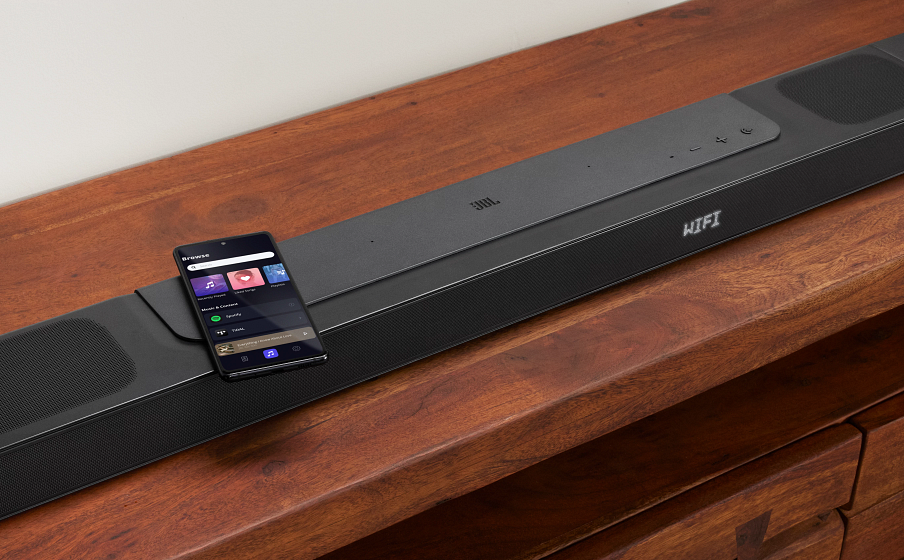

Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™

Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™

Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.

720W output power

720W output power

With 720 watts of total system power the JBL Bar 800 transforms your movies, music and games into immersive sound experiences and pulls you into the middle of the action.

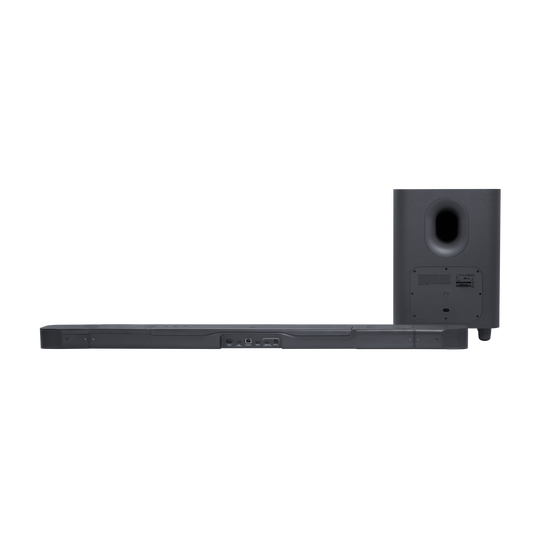

10" Wireless subwoofer

10" Wireless subwoofer

Thrilling, precise bass from a mighty 10" wireless subwoofer brings the excitement to your action movies and the emotion to your music.

PureVoice Dialogue Enhancement Technology

PureVoice Dialogue Enhancement Technology

PureVoice technology uses our unique algorithm to optimize voice clarity to ensure you never miss a word of dialogue, even when the surround effects are at their peak.

HDMI eARC with 4K Dolby Vision passthrough

HDMI eARC with 4K Dolby Vision passthrough

Enjoy uncompressed Dolby Atmos surround sound through a single HDMI cable thanks to the HDMI eARC connection. The HDMI input connection also offers 4K video quality from a compatible video player or gaming console.

JBL One App

JBL One App

Customize EQ and control all of your compatible speakers with a single convenient app. The JBL One app helps you easily set up the soundbar, personalize settings, and browse the integrated music services to find your new favorite song.

Easy sound calibration

Easy sound calibration

Every room is different. Our calibration feature ensures that the JBL Bar 800 delivers the best 3D surround effects for any interior and room layout.

Works with voice assistant-enabled speakers

Works with voice assistant-enabled speakers

Simply link the JBL Bar 800 with your voice assistant-enabled device and you can instantly ask Alexa, Google Assistant, or Siri to stream all your favorite music to the soundbar.

Specs & Downloads

Item# JBLBAR800PROBLKAS

General Specifications

Power supply 100 - 240V AC, ~ 50/60Hz
Networked standby power < 2.0W
Operating temperature 0°C - 45°C

Audio Specifications

Total speaker power output (Max @THD 1%) 720W
Soundbar output power (Max @THD 1%) 340W
Surround speaker output power (Max @THD 1%) 2x 40W
Subwoofer output power (Max. @THD 1%) 300 W
Soundbar transducer 3x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers
Surround speaker transducer 1x (46x90)mm racetrack driver
Subwoofer transducer 10” (260mm)
Frequency response 35Hz - 20kHz (-6dB)
Audio inputs 1 Optical, Bluetooth, Chromecast Built-in, AirPlay and Alexa MRM, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Total soundbar dimensions (W x H x D) 1174 x 56 x 120 mm / 46.2" x 2.2" x 4.7"

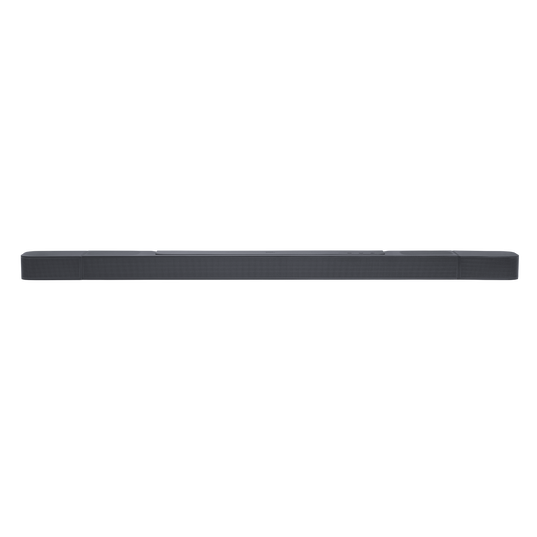

Main soundbar dimensions (W x H x D) 884 x 56 x 120 mm / 34.8" x 2.2" x 4.7"
Detachable surround speaker dimensions (each) (W x H x D) 145 x 56 x 120 mm / 5.7" x 2.2" x 4.7"
Subwoofer dimensions (W x H x D) 305 x 440.4 x 305 mm / 12" x 17.3" x 12"
Soundbar weight 3.4 kg / 7.4 lbs
Detachable surround speaker weight (each) 1.3 kg / 2.8 lbs
Subwoofer weight 10 kg / 22 lbs
Packaging dimensions (W x H x D) 1000 x 375 x 475 mm/ 39.4" x 14.8" x 18.7"
Packaging Weight 18.9 kg / 41.6 lbs

Control and Connection Specifications

USB port Type A
USB rating 5V DC, 0.5A
Supporting file format MP3
MP3 codec MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate 16 - 48 kHz
MP3 bitrate 80 - 320 kpbs
Bluetooth version 5.0
Bluetooth profile A2DP 1.2, AVRCP 1.5
Bluetooth transmitter frequency range 2400MHz – 2483.5MHz
Bluetooth transmitter power <15dBm (EIRP)
Wi-Fi network IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
2.4G Wi-Fi transmitter power < 20dBm (EIRP)
5G Wi-Fi transmitter frequency range 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz
5G Wi-Fi transmitter power 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
2.4G wireless transmitter frequency range 2406 - 2474MH
2.4G wireless transmitter power <10dBm (EIRP)

Battery

Lithium battery 3.635V, 3283mAh

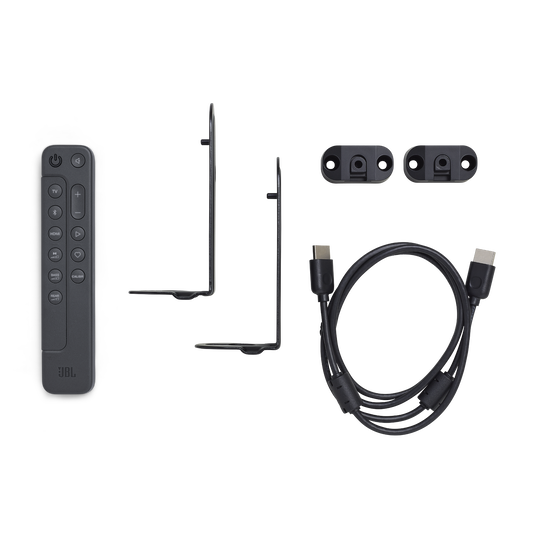

What's in the box?

  • 1x Main soundbar
  • 2x Detachable wireless surround speakers
  • 1x Wireless subwoofer
  • Remote control with 2 x batteries
  • Power cords (up to 8pcs depending on region SKUs)
  • 1 x HDMI cable
  • 2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws
  • 4 x Side caps
  • Quick start guide
  • Safety instruction and Warranty card
  • Wall mount template
