JBL

MS-12SD4

Details
Variations

A 12" (300mm), high power-handling, dual voice-coil premium subwoofer



Premium-performance 4-ohm subwoofer.

The JBL® MS-12SD4 is a high-performance, high power-handling, dual voice-coil subwoofer using advanced materials and innovative engineering to create smooth, powerful bass in your car. The subwoofer’s dual 4-ohm voice-coil design allows for a wide variety of connection options. You can use multiple subs to add bass, as many amplifiers – particularly the JBL MS-A5001 digital signal processing amplifier – easily drive multiple subwoofers. This sub features advanced components that include rigid polypropylene cones, stitched tri-laminate surrounds, vented magnet assemblies and non-magnetic, cast-aluminum frames for minimal power compression under extended use. Its peak power handling is 1800 watts, so it can handle tremendous power. It requires very modest enclosure volumes and performs well in either a sealed or a vented enclosure design. This subwoofer is truly a premium, performance-oriented product that can deliver excellent bass in your car.

Item# MS-12SD4

General Specifications

Size 12"

Audio Specifications

Sensitivity (1W @ 1m) 87dB SPL
Peak Power 1800W
Power Handling (RMS) 900W
Power Handling (Peak) 1800W
Frequency Response (-10dB) 30Hz-400Hz
Nominal Impedance 4+4 ohms

Dimensions

Mounting Cutout Diameter (in) 10-14/16
External Diameter (mm) 326
Mounting Depth (mm) 171
Weight (lb) 11.9
Weight (kg) 5.44
External Diameter (in) 12-13/16
Mounting Depth (in) 6-12/16
Mounting Cutout Diameter (mm) 277
Click here for a complete list of all specs for this product

Spec Sheet (EN)

English 683 KB

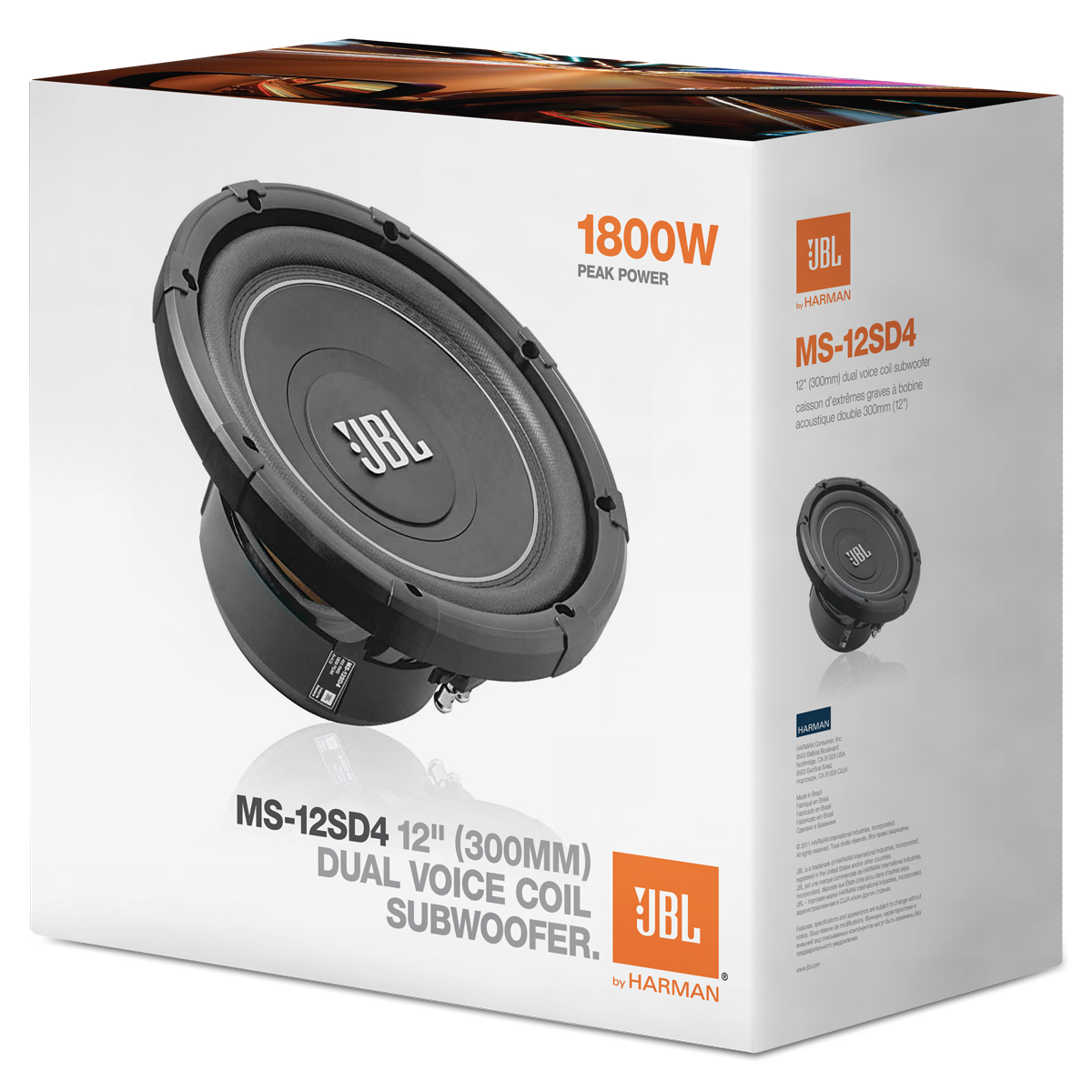

  • (1) MS-12SD4 Subwoofer
  • (1) Owners Manual
